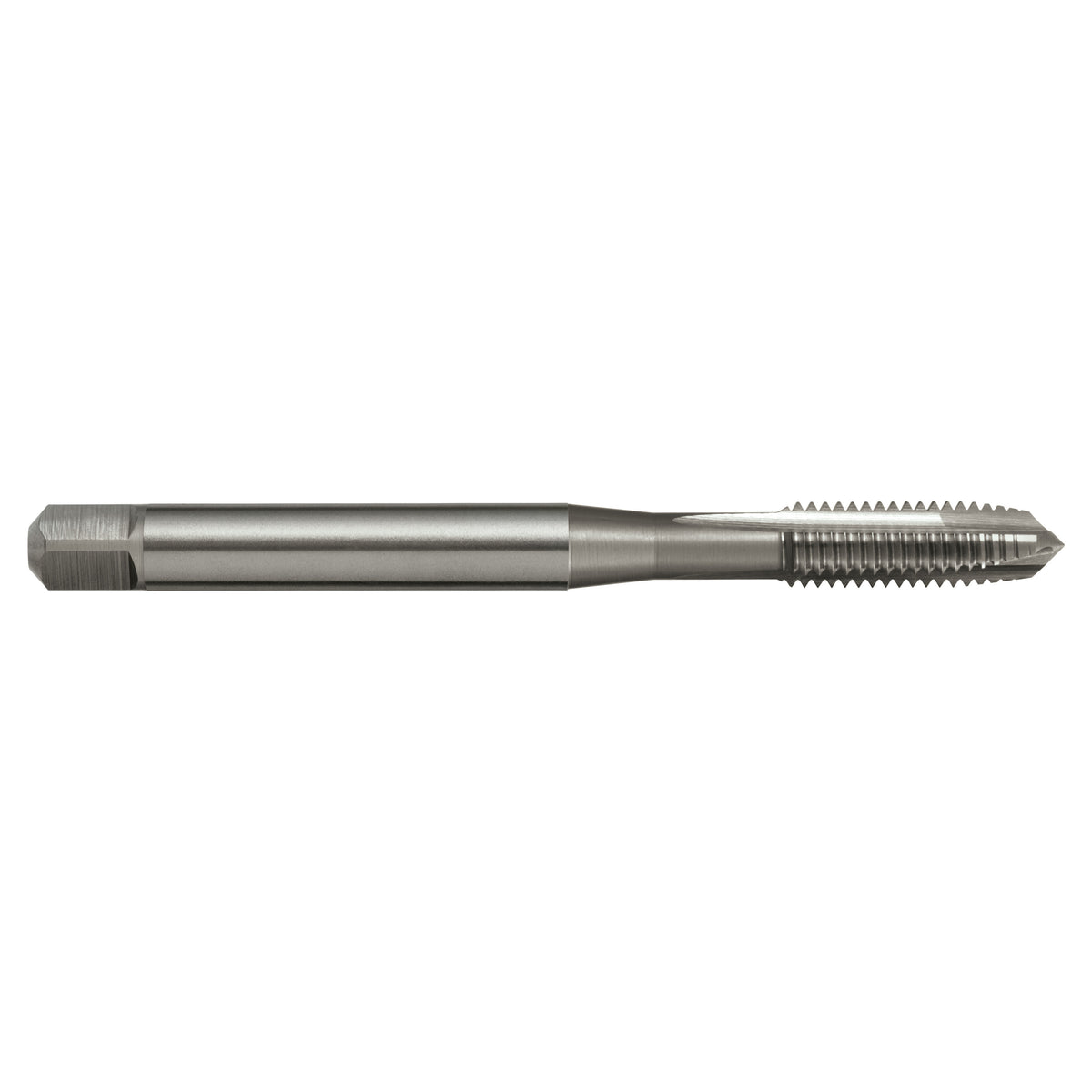

Sutton Tap T164 Uncb Gun N DIN2184- B Hsse
Sutton Tap T164 Uncb Gun N DIN2184- B Hsse. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
- Material / grade: HSS-E
- Standard: DIN2184-
- Model / series reference: T164
Specifications and available options
| Specification | TAP T164 UNC 1-8 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 1/2-13 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 1/4-20 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 2-56 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 3-48 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 3/4-10 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 3/8-16 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 4-40 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 5-40 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 5/8-11 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 5/16-18 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 6-32 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 7/8-9 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 7/16-14 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 8-32 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 9/16-12 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 10-24 2B GUN N DIN2184-1 B HSSE TAP T164 UNC 12-24 2B GUN N DIN2184-1 B HSSE |
|---|
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| TAP T164 UNC 1-8 2B GUN N DIN2184-1 B HSSE | T1642540 |
| TAP T164 UNC 1/2-13 2B GUN N DIN2184-1 B HSSE | T1641270 |
| TAP T164 UNC 1/4-20 2B GUN N DIN2184-1 B HSSE | T1640635 |
| TAP T164 UNC 2-56 2B GUN N DIN2184-1 B HSSE | T1640218 |
| TAP T164 UNC 3-48 2B GUN N DIN2184-1 B HSSE | T1640251 |
| TAP T164 UNC 3/4-10 2B GUN N DIN2184-1 B HSSE | T1641905 |
| TAP T164 UNC 3/8-16 2B GUN N DIN2184-1 B HSSE | T1640953 |
| TAP T164 UNC 4-40 2B GUN N DIN2184-1 B HSSE | T1640284 |
| TAP T164 UNC 5-40 2B GUN N DIN2184-1 B HSSE | T1640318 |
| TAP T164 UNC 5/8-11 2B GUN N DIN2184-1 B HSSE | T1641588 |
| TAP T164 UNC 5/16-18 2B GUN N DIN2184-1 B HSSE | T1640794 |
| TAP T164 UNC 6-32 2B GUN N DIN2184-1 B HSSE | T1640351 |
| TAP T164 UNC 7/8-9 2B GUN N DIN2184-1 B HSSE | T1642223 |
| TAP T164 UNC 7/16-14 2B GUN N DIN2184-1 B HSSE | T1641111 |
| TAP T164 UNC 8-32 2B GUN N DIN2184-1 B HSSE | T1640417 |
| TAP T164 UNC 9/16-12 2B GUN N DIN2184-1 B HSSE | T1641429 |
| TAP T164 UNC 10-24 2B GUN N DIN2184-1 B HSSE | T1640483 |
| TAP T164 UNC 12-24 2B GUN N DIN2184-1 B HSSE | T1640549 |
