Excision X5070 4FL 30° Helix End Mills
Excision X5070 4FL 30° Helix End Mills. End mills and milling cutters remove material with their cutting end and flutes.
Choosing the right specification
Match cutting diameter, shank, length of cut and reach. Flute count, end shape and coating identify different cutter configurations.
Product details
End mills for milling and profiling operations.
Excision (G8A02-M) X5070
- Specified features include 4-flute geometry, 30° helix.
- X5070 4FL 30deg. Helix E/M 4X6X4(10)X55 — Part G8A02040M
- X5070 4FL 30deg. Helix E/M 6X6X6(15)X55 — Part G8A02060M
- X5070 4FL 30deg. Helix E/M 8X8X8(20)X65 — Part G8A02080M
- X5070 4FL 30deg. Helix E/M 10X10X10(25)X75 — Part G8A02100M

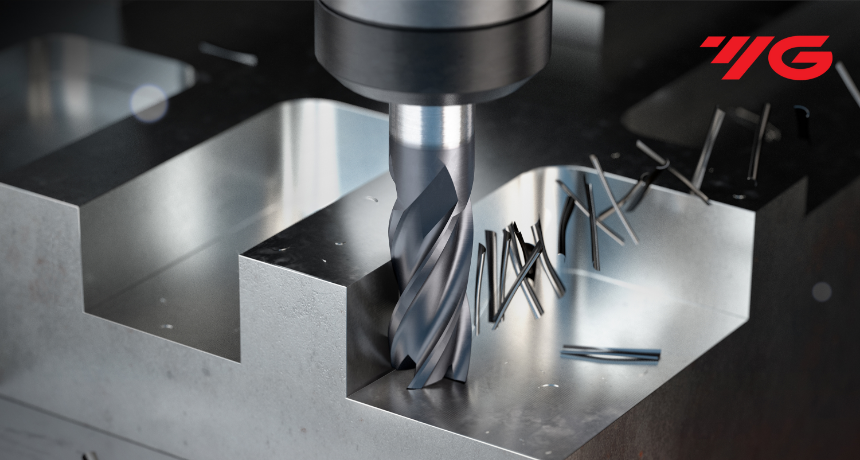

Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02)
Product details
The YG-1 G8A02 series X5070 Blue ultrafine micrograin carbide cutter has 4 flutes and a plain shank. These end mills have an extended/relieved neck and range in diameter from 1mm-20mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°)
- Long neck for extended reach.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Specifications
| Flutes | 4 |
| Helix Angle | 30° |
| Cutting Edge Shape | Corner Radius |
| Size Min | D6.0 |
| Size Max | D20.0 |
| Length | Extended Neck |
| Coating | Blue Coating |
- Specified features include 4-flute geometry, 30° helix.
Choose by Mill Diameter (mm), then confirm the exact part number for the required cutter.
- Mill Diameter (mm): 1.0 — Part G8A02010
- Mill Diameter (mm): 2.0 — Part G8A02020
- Mill Diameter (mm): 3.0 — Part G8A02030
- Mill Diameter (mm): 4.0 — Part G8A02040
- Mill Diameter (mm): 5.0 — Part G8A02050
- Mill Diameter (mm): 6.0 — Part G8A02060
- Mill Diameter (mm): 8.0 — Part G8A02080
- Mill Diameter (mm): 10.0 — Part G8A02100
- Mill Diameter (mm): 12.0 — Part G8A02120
- Mill Diameter (mm): 16.0 — Part G8A02160
- Mill Diameter (mm): 20.0 — Part G8A02200
Match each specification to its product code
| Range | Specification | Product code (SKU) |
|---|---|---|
| Excision (G8A02-M) X5070 | X5070 4FL 30deg. Helix E/M 10X10X10(25)X75 — SEG8A02100M | SEG8A02100M |
| Excision (G8A02-M) X5070 | X5070 4FL 30deg. Helix E/M 4X6X4(10)X55 — SEG8A02040M | SEG8A02040M |
| Excision (G8A02-M) X5070 | X5070 4FL 30deg. Helix E/M 6X6X6(15)X55 — SEG8A02060M | SEG8A02060M |
| Excision (G8A02-M) X5070 | X5070 4FL 30deg. Helix E/M 8X8X8(20)X65 — SEG8A02080M | SEG8A02080M |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 1.0 — SEG8A02010 | SEG8A02010 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 10.0 — SEG8A02100 | SEG8A02100 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 12.0 — SEG8A02120 | SEG8A02120 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 16.0 — SEG8A02160 | SEG8A02160 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 2.0 — SEG8A02020 | SEG8A02020 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 20.0 — SEG8A02200 | SEG8A02200 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 3.0 — SEG8A02030 | SEG8A02030 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 4.0 — SEG8A02040 | SEG8A02040 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 5.0 — SEG8A02050 | SEG8A02050 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 6.0 — SEG8A02060 | SEG8A02060 |
| Excision X5070 4 Flute 30°Helix Stub End Mill (G8A02) | 8.0 — SEG8A02080 | SEG8A02080 |
