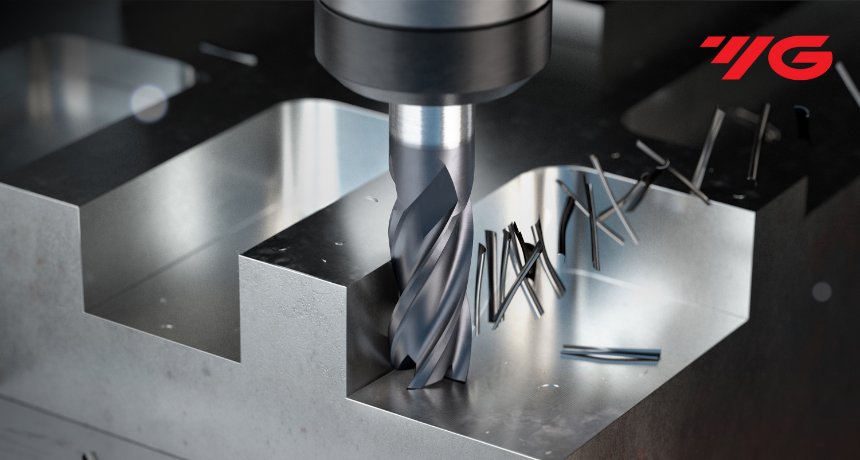

Excision X5070 4FL 30° Helix Stub Corner Radius End Mills

(G8A47-C) X5070 is an 4-flute geometry, 30° helix, corner-radius profile end mill for milling work that requires a defined corner radius. The range keeps the cutter geometry and size information close to each selectable option.

Why choose it

• Specified features include 4-flute geometry, 30° helix, corner-radius profile.
• Dimensions and geometry are presented together to make tool selection faster.
• Available in 4 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by mill diameter, shank diameter, length of cut and overall length, then confirm the exact part number for the required cutter.

• X5070 4FL 30deg. Helix Stub Corner Radius E/M 3(R0.5)X6X4(10)X55 — Part G8A47030C
• X5070 4FL 30deg. Helix Stub Corner Radius E/M 4(R0.5)X6X5(12)X55 — Part G8A47040C
• X5070 4FL 30deg. Helix Stub Corner Radius E/M 10(R0.5)X10X11(32)X70 — Part G8A47911C
• X5070 4FL 30deg. Helix Stub Corner Radius E/M 12(R1)X12X12(38)X80 — Part G8A47120C

X5070 4-flute 30°Helix Stub Corner Radius End Mill (G8A37) is an 4-flute geometry, 30° helix, corner-radius profile end mill for milling work that requires a defined corner radius. The range keeps the cutter geometry and size information close to each selectable option.

Product details

The YG-1 G8A37 series short length X5070 Blue ultrafine micrograin carbide cutter has 4 flutes and a plain shank. These end mills have an extended/relieved neck and corner radius. They range in diameter from 1mm-20mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.

• Nanograin carbide substrate with blue silicone based coating.
• Dry machining in steels and hardened steeld < HRc70.
• Suitable for machining at extreme cutting speeds.
• High abrasion resistance with a mirror surface finish.
• Strong negative land provides tool strength for high hardness machining.
• Ultimate tool life.
• Can cope with extreme heat (up to 1400°).
• High Speed Roughing & Finishing.
• Deep slotting is possible by reduced neck.
• Corner radius for preventing chipping in high speed machining.
• To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).

Specifications

Why choose it

• Specified features include 4-flute geometry, 30° helix, corner-radius profile.
• Dimensions and geometry are presented together to make tool selection faster.
• Available in 18 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by Mill Diameter (mm) and Corner Radius (mm) and Shank Diameter (mm), then confirm the exact part number for the required cutter.

18 options are available in this product family. Use the selector to choose the required Mill Diameter (mm) and Corner Radius (mm) and Shank Diameter (mm); each option remains tied to its exact part number.

X5070 4-flute 30°Helix Stub Corner Radius End Mill (G8A47) is an 4-flute geometry, 30° helix, corner-radius profile end mill for milling work that requires a defined corner radius. The range keeps the cutter geometry and size information close to each selectable option.

Product details

The YG-1 G8A47 series X5070 Blue ultrafine micrograin carbide cutter has 4 flutes and a plain shank. These end mills have an extended/relieved neck and corner radius. They range in diameter from 3mm-12mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.

• Nanograin carbide substrate with blue silicone based coating.
• Dry machining in steels and hardened steeld < HRc70.
• Suitable for machining at extreme cutting speeds.
• High abrasion resistance with a mirror surface finish.
• Strong negative land provides tool strength for high hardness machining.
• Ultimate tool life.
• Can cope with extreme heat (up to 1400°).
• High Speed Roughing & Finishing.
• Deep slotting is possible by reduced neck.
• Corner radius for preventing chipping in high speed machining.
• To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).

Specifications

Why choose it

• Specified features include 4-flute geometry, 30° helix, corner-radius profile.
• Dimensions and geometry are presented together to make tool selection faster.
• Available in 22 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by Mill Diameter (mm) and Corner Radius (mm) and Length Below Shank (mm), then confirm the exact part number for the required cutter.

22 options are available in this product family. Use the selector to choose the required Mill Diameter (mm) and Corner Radius (mm) and Length Below Shank (mm); each option remains tied to its exact part number.

X5070 4FL 30Deg. Helix Stub Corner Radius E/M by . Select the required specification from the available variants.

This Carbide Endmills family lists the manufacturer part number, specification and current price for each option.
