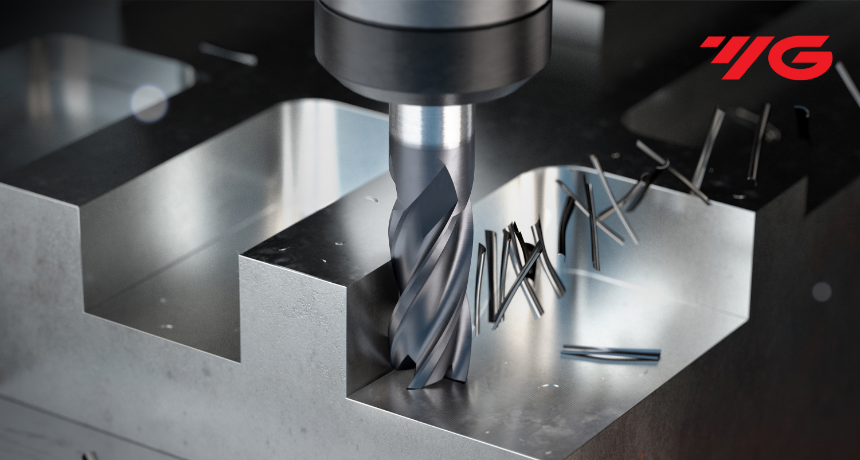

Excision X5070 2 Flute 30°Helix Stub Ball End Mill (G8A38)
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision X5070 2 Flute 30°Helix Stub Ball End Mill (G8A38)
Excision X5070 2 Flute 30°Helix Stub Ball End Mill (G8A38). End mills and milling cutters remove material with their cutting end and flutes.
Choosing the right specification
Match cutting diameter, shank, length of cut and reach. Flute count, end shape and coating identify different cutter configurations.
Product details
Product details
The YG-1 G8A38 series X5070 Blue ultrafine micrograin carbide cutter has 2 flutes and a plain shank. These slot drills have a ball nosed end for high precision 3D machining. They range in diameter from 1mm-25mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°).
- Designed for high precision milling operations.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Specifications
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | Ball Nose |
| Size Min | R0.5 |
| Size Max | R12.5 |
| Length | Extended Neck |
| Coating | Blue Coating |
- Specified features include 2-flute geometry, 30° helix, ball-nose profile.
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| Mill Diameter (mm): 1.0 | Ball Nose Radius (mm): R0.5 | Shank Diameter (mm): 4.0 | SEG8A38010 |
| Mill Diameter (mm): 1.2 | Ball Nose Radius (mm): R0.6 | Shank Diameter (mm): 4.0 | SEG8A38012 |
| Mill Diameter (mm): 1.5 | Ball Nose Radius (mm): R0.75 | Shank Diameter (mm): 4.0 | SEG8A38015 |
| Mill Diameter (mm): 2.0 | Ball Nose Radius (mm): R1.0 | Shank Diameter (mm): 4.0 | SEG8A380204S |
| Mill Diameter (mm): 2.0 | Ball Nose Radius (mm): R1.0 | Shank Diameter (mm): 6.0 | SEG8A38020 |
| Mill Diameter (mm): 3.0 | Ball Nose Radius (mm): R1.5 | Shank Diameter (mm): 6.0 | SEG8A38030 |
| Mill Diameter (mm): 4.0 | Ball Nose Radius (mm): R2.0 | Shank Diameter (mm): 6.0 | SEG8A38040 |
| Mill Diameter (mm): 5.0 | Ball Nose Radius (mm): R2.5 | Shank Diameter (mm): 6.0 | SEG8A38050 |
| Mill Diameter (mm): 6.0 | Ball Nose Radius (mm): R3.0 | Shank Diameter (mm): 6.0 | SEG8A38060 |
| Mill Diameter (mm): 7.0 | Ball Nose Radius (mm): R3.5 | Shank Diameter (mm): 8.0 | SEG8A38070 |
| Mill Diameter (mm): 8.0 | Ball Nose Radius (mm): R4.0 | Shank Diameter (mm): 8.0 | SEG8A38080 |
| Mill Diameter (mm): 9.0 | Ball Nose Radius (mm): R4.5 | Shank Diameter (mm): 10.0 | SEG8A38090 |
| Mill Diameter (mm): 10.0 | Ball Nose Radius (mm): R5.0 | Shank Diameter (mm): 10.0 | SEG8A38100 |
| Mill Diameter (mm): 12.0 | Ball Nose Radius (mm): R6.0 | Shank Diameter (mm): 12.0 | SEG8A38120 |
| Mill Diameter (mm): 14.0 | Ball Nose Radius (mm): R7.0 | Shank Diameter (mm): 14.0 | SEG8A38140 |
| X5070 2FL 30deg. Helix Stub Ball E/M 16X16X16(32)X140 | SEG8A38160 |
| Mill Diameter (mm): 18.0 | Ball Nose Radius (mm): R9.0 | Shank Diameter (mm): 18.0 | SEG8A38180 |
| Mill Diameter (mm): 20.0 | Ball Nose Radius (mm): R10.0 | Shank Diameter (mm): 20.0 | SEG8A38200 |
| Mill Diameter (mm): 25.0 | Ball Nose Radius (mm): R12.5 | Shank Diameter (mm): 25.0 | SEG8A38250 |
