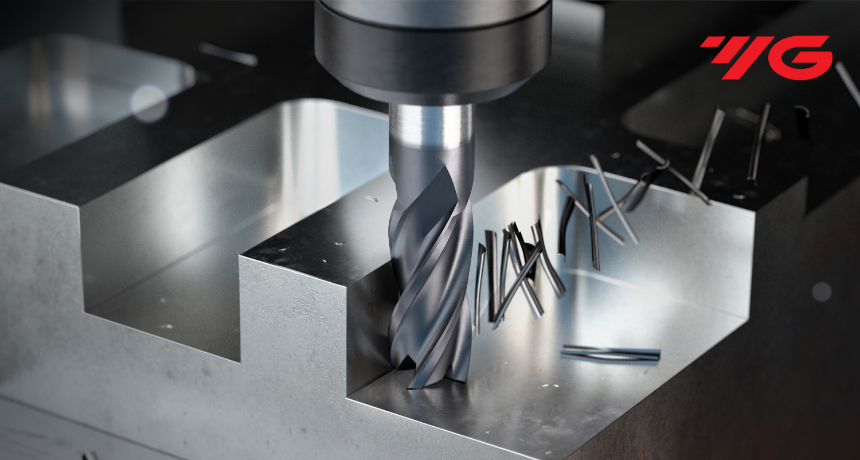

Excision X5070 2FL 30° Helix End Mills

(G8A01-C) X5070 is an 2-flute geometry, 30° helix end mill for milling work that requires the listed cutter geometry and dimensions. The range keeps the cutter geometry and size information close to each selectable option.

Why choose it

• Specified features include 2-flute geometry, 30° helix.
• Dimensions and geometry are presented together to make tool selection faster.
• One clearly identified option keeps spare-part and repeat-order selection straightforward.

Choose the right option

Choose by mill diameter, shank diameter, length of cut and overall length, then confirm the exact part number for the required cutter.

• X5070 2FL 30deg. Helix E/M 1.5X6X1.7(4)X50 — Part G8A01015C

X5070 2-flute 30°Helix Corner Radius End Mill (G8A50) is an 2-flute geometry, 30° helix, corner-radius profile end mill for milling work that requires a defined corner radius. The range keeps the cutter geometry and size information close to each selectable option.

Product details

The YG-1 G8A50 series miniature X5070 Blue ultrafine micrograin carbide cutter has 2 flutes and a plain shank. The corner radius slot drills are ideal for ultra-high precision machining. They range in diameter from 0.3mm-2mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.

• Nanograin carbide substrate with blue silicone based coating.
• Dry machining in steels and hardened steeld < HRc70.
• Suitable for machining at extreme cutting speeds.
• High abrasion resistance with a mirror surface finish.
• Strong negative land provides tool strength for high hardness machining.
• Ultimate tool life.
• Can cope with extreme heat (up to 1400°).
• Excellent workplace finish.
• Corner radius for preventing chipping in high speed machining.
• Designed for high precision milling operation.
• To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).

Specifications

Why choose it

• Specified features include 2-flute geometry, 30° helix, corner-radius profile.
• Dimensions and geometry are presented together to make tool selection faster.
• Available in 7 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by Mill Diameter (mm) and Corner Radius (mm), then confirm the exact part number for the required cutter.

• Mill Diameter (mm): 0.3; Corner Radius (mm): R0 — Part G8A50003
• Mill Diameter (mm): 0.6; Corner Radius (mm): R0.05 — Part G8A50006
• Mill Diameter (mm): 0.8; Corner Radius (mm): R0.05 — Part G8A50008
• Mill Diameter (mm): 1.0; Corner Radius (mm): R0.10 — Part G8A50010
• Mill Diameter (mm): 1.2; Corner Radius (mm): R0.10 — Part G8A50012
• Mill Diameter (mm): 1.5; Corner Radius (mm): R0.15 — Part G8A50015
• Mill Diameter (mm): 2.0; Corner Radius (mm): R0.15 — Part G8A50020

X5070 2-flute 30°Helix End Mill (G8A01) is an 2-flute geometry, 30° helix end mill for milling work that requires the listed cutter geometry and dimensions. The range keeps the cutter geometry and size information close to each selectable option.

Product details

The YG-1 G8A01 series X5070 Blue ultrafine micrograin carbide cutter has 2 flutes and a plain shank. These slot drills have an extended/relieved neck and range in diameter from 0.1mm-20mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.

• Nanograin carbide substrate with blue silicone based coating.
• Dry machining in steels and hardened steeld < HRc70.
• Suitable for machining at extreme cutting speeds.
• High abrasion resistance with a mirror surface finish.
• Strong negative land provides tool strength for high hardness machining.
• Ultimate tool life.
• Can cope with extreme heat (up to 1400°)
• Long neck for extended reach.
• To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).

Specifications

Why choose it

• Specified features include 2-flute geometry, 30° helix.
• Dimensions and geometry are presented together to make tool selection faster.
• Available in 23 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by mill diameter, shank diameter, length of cut and overall length, then confirm the exact part number for the required cutter.

23 options are available in this product family. Use the selector to choose the required mill diameter, shank diameter, length of cut and overall length; each option remains tied to its exact part number.
