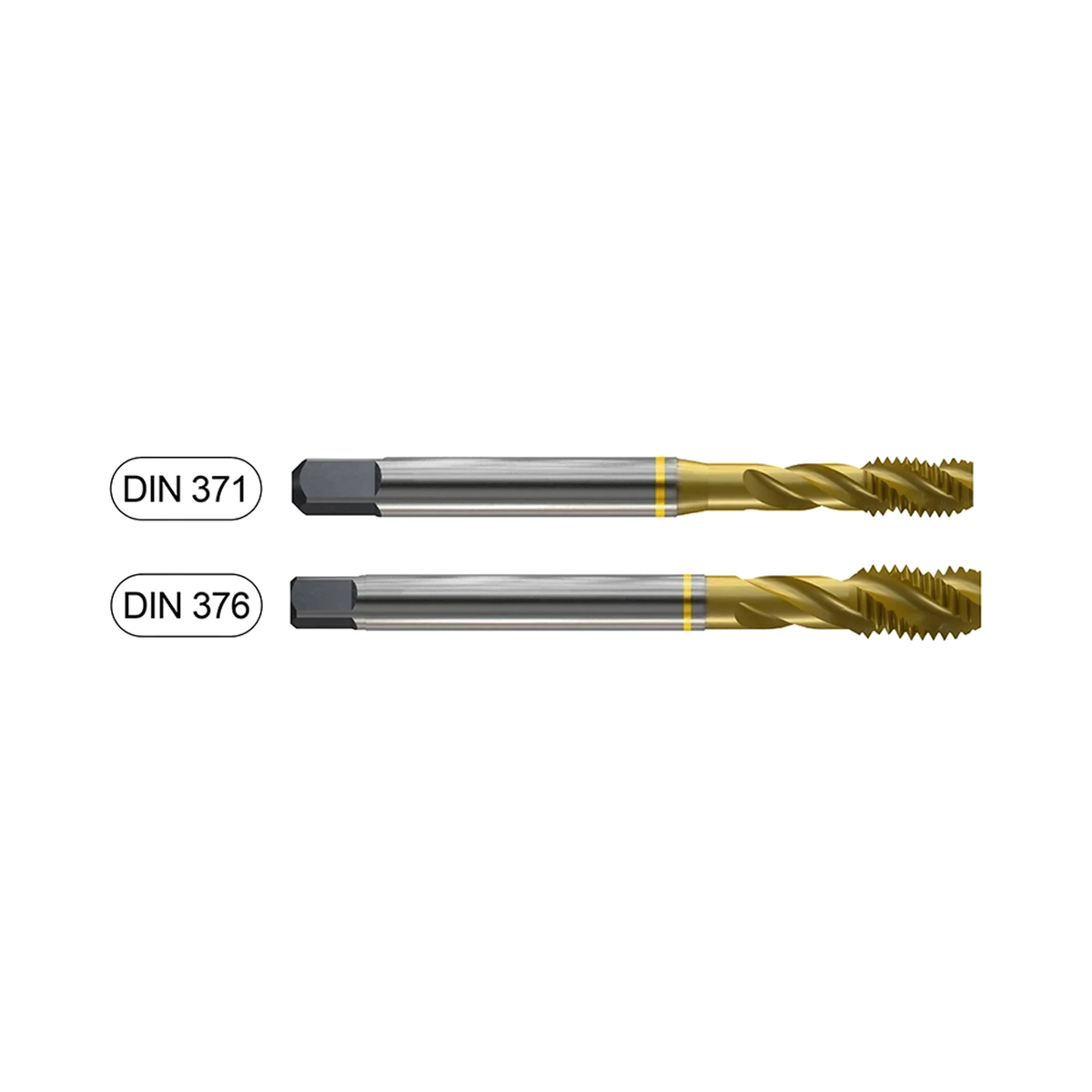

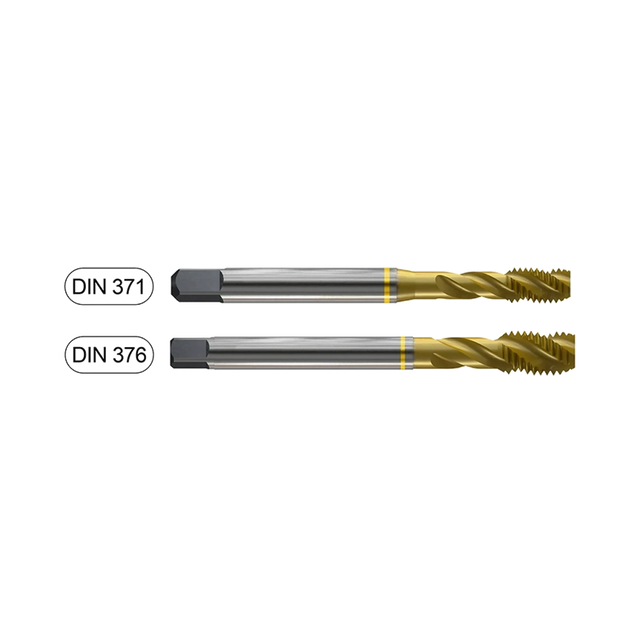

Excision (TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated)
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (TTS31) HSS-PM, Metric Synchro tap Spiral Flute for Genera...
Excision (TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated). Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated) is an HSS, TiN coating, spiral flutes tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- Coated HSS-PM(Powder Metallurgy) Taps for high-speed tapping on rigid CNC machines or equivalent machines
- Up to 3 times faster in tapping compared to conventional taps
- For high-speed synchro tapping, synchro holder for increasing tool life and thread quality is recommended
- High precision threads
- Specified features include HSS, TiN coating, spiral flutes.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and Pitch, then confirm work material and hole type against current cutting data.
- Size: M3; Pitch: 0.5 — Part TTS31206
- Size: M4; Pitch: 0.7 — Part TTS31246
- Size: M5; Pitch: 0.8 — Part TTS31286
- Size: M6; Pitch: 1 — Part TTS31316
- Size: M8; Pitch: 1.25 — Part TTS31366
- Size: M10; Pitch: 1.5 — Part TTS31426
- Size: M12; Pitch: 1.75 — Part TTS31506
- Size: M14; Pitch: 2 — Part TTS31546
- Size: M16; Pitch: 2 — Part TTS31606
- Size: M18; Pitch: 2.5 — Part TTS31656
- Size: M20; Pitch: 2.5 — Part TTS31706
- Material / grade: HSS
- Thread form: metric
- Model / series reference: TTS31
Specifications and options
| Size | M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 |
|---|---|
| Pitch | 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2.5 |
Match each specification to its product code
| Size | Pitch | Product code (SKU) |
|---|---|---|
| M3 | 0.5 | SETTS31206 |
| M4 | 0.7 | SETTS31246 |
| M5 | 0.8 | SETTS31286 |
| M6 | 1 | SETTS31316 |
| M8 | 1.25 | SETTS31366 |
| M10 | 1.5 | SETTS31426 |
| M12 | 1.75 | SETTS31506 |
| M14 | 2 | SETTS31546 |
| M16 | 2 | SETTS31606 |
| M18 | 2.5 | SETTS31656 |
| M20 | 2.5 | SETTS31706 |
