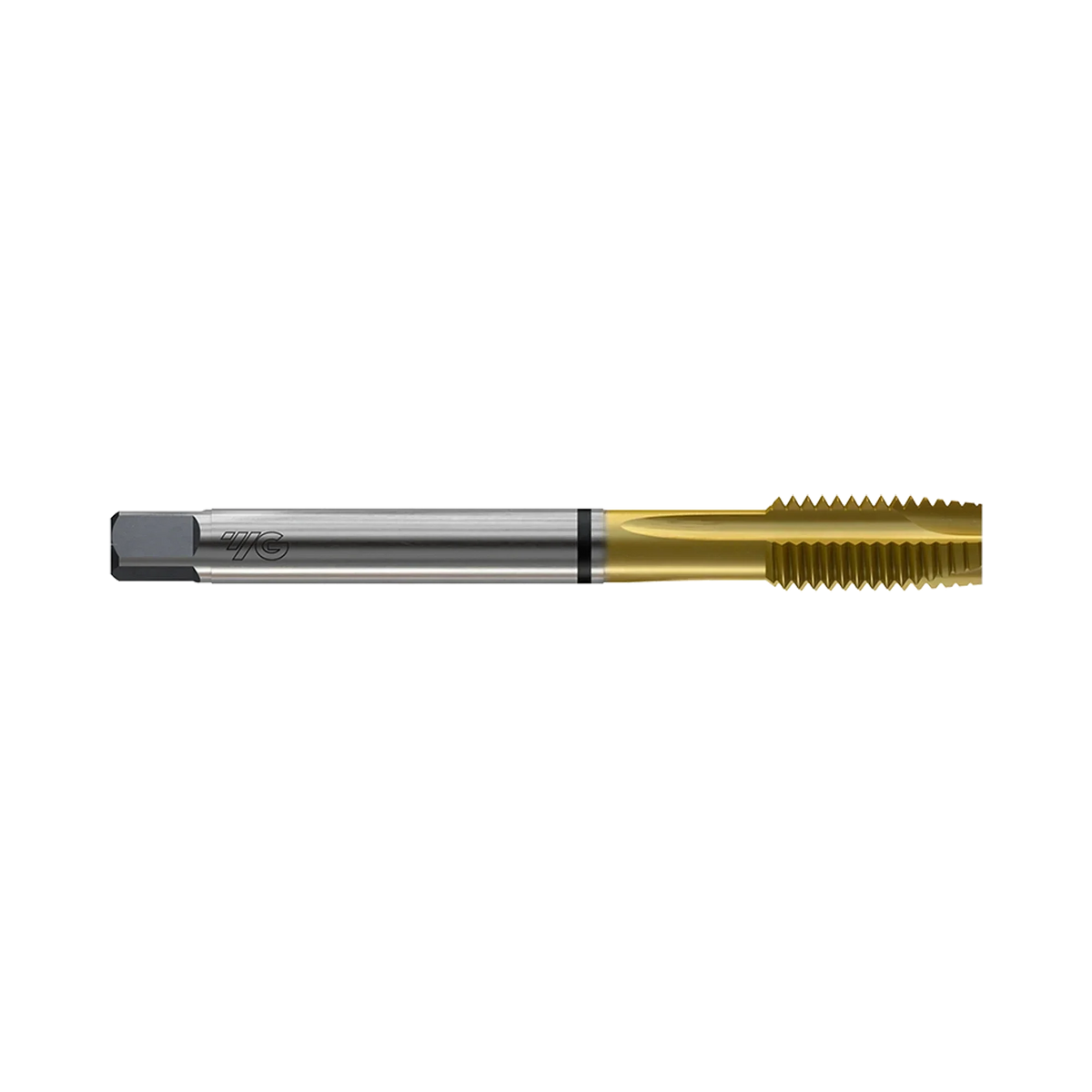

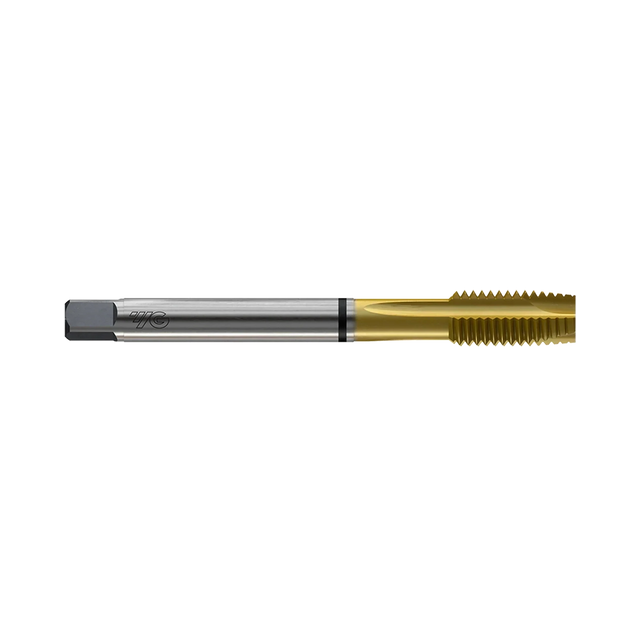

Excision (TD834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose (TiN Coated)
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (TD834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purp...
Excision (TD834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose (TiN Coated). Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TD834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose (TiN Coated) is an HSS-E (M35), TiN coating, spiral-point geometry tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
TD834 DIN371/DIN376 COMBO Spiral Point TiN tap forms correct UNC thread profiles across varied materials. HSS-E (M35) substrate with spiral point geometry suits through holes and efficient chip evacuation. TiN coating improves life, while YG-1 patented design helps prevent over feeding and premature failure.
- Specified features include HSS-E (M35), TiN coating, spiral-point geometry, DIN376.
- Thread and geometry details are grouped for faster application matching.
Choose by thread diameter, pitch, tap form and overall length, then confirm work material and hole type against current cutting data.
- Material / grade: HSS-E
- Thread form: UNC
- Model / series reference: TD834
Specifications and available options
| Specification | Size: 1 | TPI: 8UNC Size: 1/2 | TPI: 13UNC Size: 1/4 | TPI: 20UNC Size: 3/4 | TPI: 10UNC Size: 3/8 | TPI: 16UNC Size: 5/8 | TPI: 11UNC Size: 5/16 | TPI: 18UNC Size: 7/16 | TPI: 14UNC Size: 9/16 | TPI: 12UNC Size: #4 | TPI: 40UNC Size: #5 | TPI: 40UNC Size: #6 | TPI: 32UNC Size: #8 | TPI: 32UNC Size: #10 | TPI: 24UNC Size: #12 | TPI: 24UNC HSS-E COMBO DIN376 GUN POINT TAP TIN COATING 7/8-9UNC 2B 140.0L |
|---|
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| Size: 1 | TPI: 8UNC | SETD834782 |
| Size: 1/2 | TPI: 13UNC | SETD834562 |
| Size: 1/4 | TPI: 20UNC | SETD834402 |
| Size: 3/4 | TPI: 10UNC | SETD834702 |
| Size: 3/8 | TPI: 16UNC | SETD834482 |
| Size: 5/8 | TPI: 11UNC | SETD834642 |
| Size: 5/16 | TPI: 18UNC | SETD834442 |
| Size: 7/16 | TPI: 14UNC | SETD834522 |
| Size: 9/16 | TPI: 12UNC | SETD834602 |
| Size: #4 | TPI: 40UNC | SETD834162 |
| Size: #5 | TPI: 40UNC | SETD834202 |
| Size: #6 | TPI: 32UNC | SETD834242 |
| Size: #8 | TPI: 32UNC | SETD834282 |
| Size: #10 | TPI: 24UNC | SETD834322 |
| Size: #12 | TPI: 24UNC | SETD834362 |
| HSS-E COMBO DIN376 GUN POINT TAP TIN COATING 7/8-9UNC 2B 140.0L | SETD834742 |
