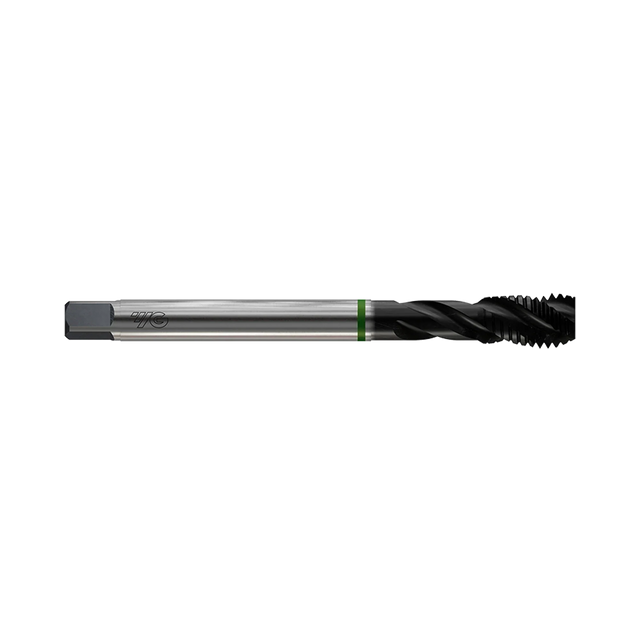

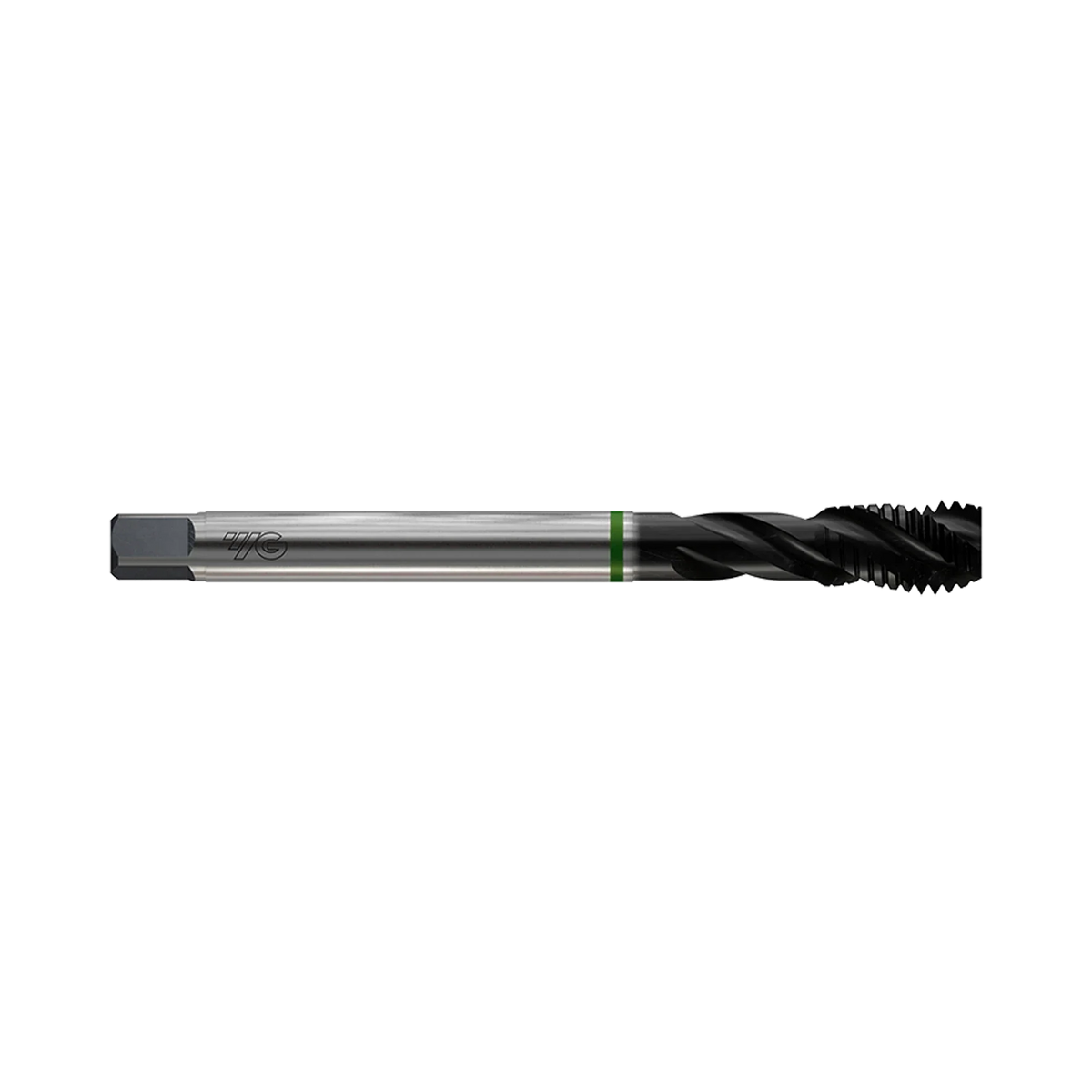

Excision (TCH14) HSS-E (M35) Metric Spiral Flute for Stainless Steel (Hardslick Coated)
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (TCH14) HSS-E (M35) Metric Spiral Flute for Stainless Stee...
Excision (TCH14) HSS-E (M35) Metric Spiral Flute for Stainless Steel (Hardslick Coated). Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TCH14) HSS-E (M35) Metric Spiral Flute for Stainless Steel (Hardslick Coated) is an HSS-E (M35), spiral flutes, DIN371 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- With recessed threads for machine tapping of deep blind holes.
- Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
- Specified features include HSS-E (M35), spiral flutes, DIN371.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and Pitch (mm), then confirm work material and hole type against current cutting data.
18 options are available in this product family. Use the selector to choose the required Size and Pitch (mm); each option remains tied to its exact part number.
- Material / grade: HSS-E
- Thread form: metric
- Model / series reference: TCH14
Specifications and available options
| Size | M2 M2.2 M2.3 M2.5 M3 M3.5 M4 M5 M6 M8 M10 M11 M12 M14 M16 M20 M22 M24 |
|---|---|
| Pitch (mm) | 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75 2 2.5 3 |
Match each specification to its product code
| Size | Pitch (mm) | Product code (SKU) |
|---|---|---|
| M2 | 0.4 | SETCH14136 |
| M2.2 | 0.45 | SETCH14156 |
| M2.3 | 0.4 | SETCH14196 |
| M2.5 | 0.45 | SETCH14176 |
| M3 | 0.5 | SETCH14206 |
| M3.5 | 0.6 | SETCH14226 |
| M4 | 0.7 | SETCH14246 |
| M5 | 0.8 | SETCH14286 |
| M6 | 1 | SETCH14316 |
| M8 | 1.25 | SETCH14366 |
| M10 | 1.5 | SETCH14426 |
| M11 | 1.5 | SETCH14466 |
| M12 | 1.75 | SETCH14506 |
| M14 | 2 | SETCH14546 |
| M16 | 2 | SETCH14606 |
| M20 | 2.5 | SETCH14706 |
| M22 | 2.5 | SETCH14746 |
| M24 | 3 | SETCH14786 |
