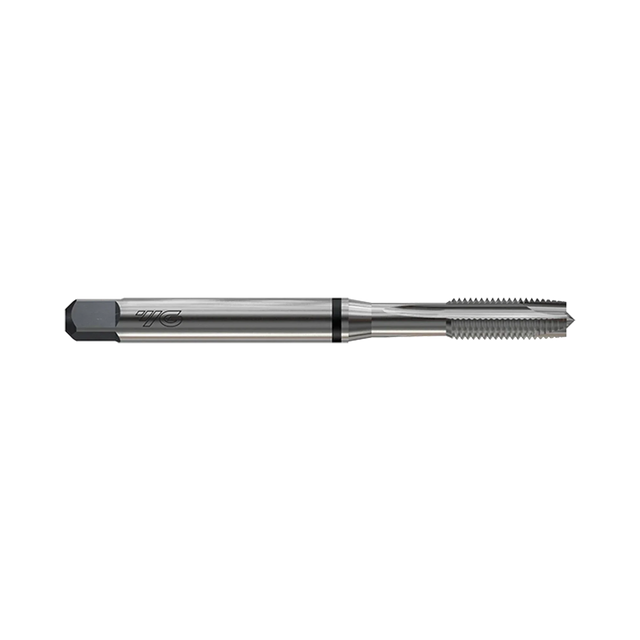

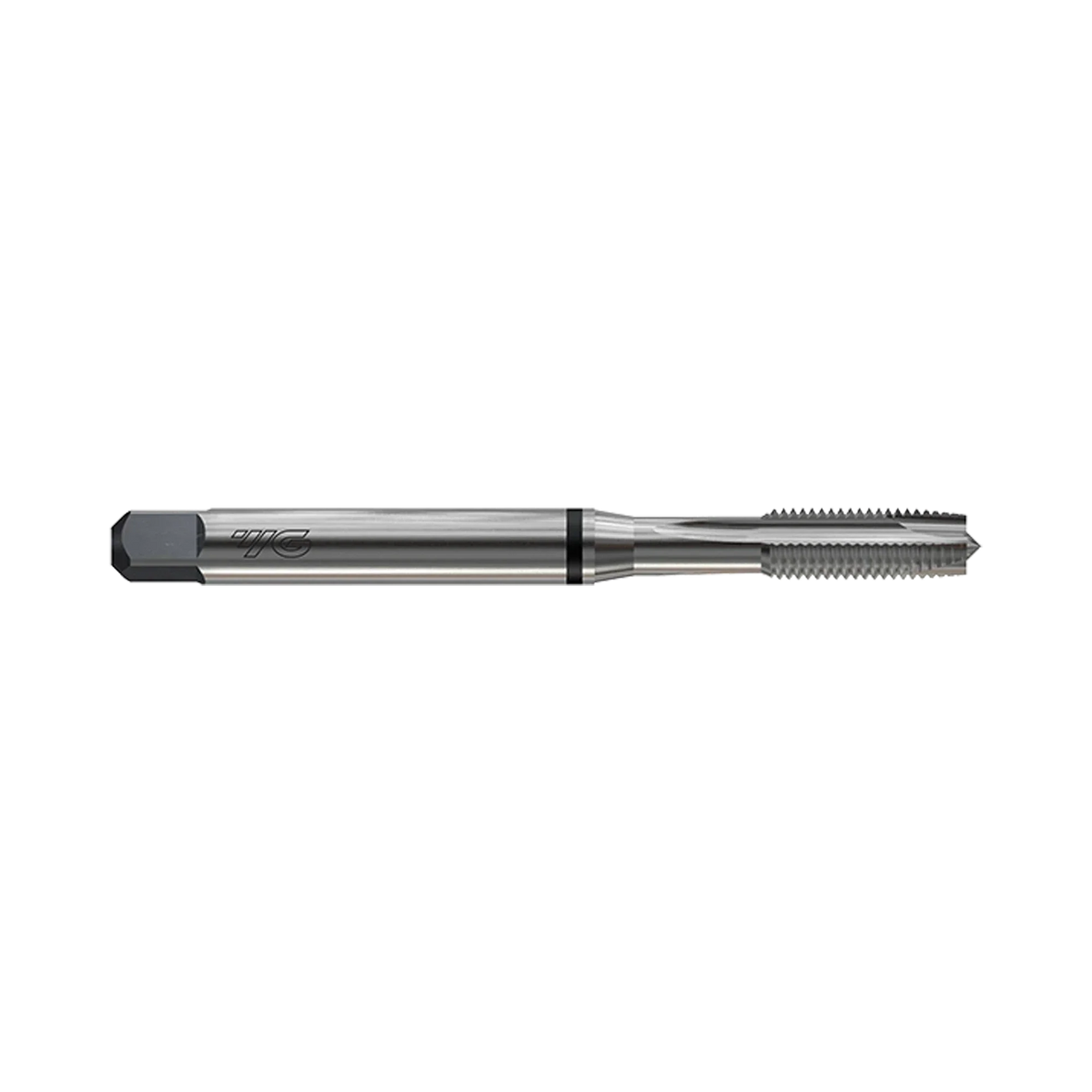

Excision (TC874) HSS-E (M35) UNF Gun Point Combo Tap for Multi Purpose
Excision (TC874) HSS-E (M35) UNF Gun Point Combo Tap for Multi Purpose. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TC874) HSS-E (M35) UNF Gun Point Combo Tap for Multi Purpose is an HSS-E (M35), spiral-point geometry, DIN374 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
- YG-1 company has a patent.
- Specified features include HSS-E (M35), spiral-point geometry, DIN374.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and TPI, then confirm work material and hole type against current cutting data.
16 options are available in this product family. Use the selector to choose the required Size and TPI; each option remains tied to its exact part number.
- Material / grade: HSS-E
- Thread form: UNF
- Model / series reference: TC874
Specifications and available options
| Size | 1 1/2 1/4 3/4 3/8 5/8 5/16 7/8 7/16 9/16 #4 #5 #6 #8 #10 #12 |
|---|---|
| TPI | 12UNF 20UNF 28UNF 16UNF 24UNF 18UNF 14UNF 48UNF 44UNF 40UNF 36UNF 32UNF |
Match each specification to its product code
| Size | TPI | Product code (SKU) |
|---|---|---|
| 1 | 12UNF | SETC874802 |
| 1/2 | 20UNF | SETC874582 |
| 1/4 | 28UNF | SETC874422 |
| 3/4 | 16UNF | SETC874722 |
| 3/8 | 24UNF | SETC874502 |
| 5/8 | 18UNF | SETC874662 |
| 5/16 | 24UNF | SETC874462 |
| 7/8 | 14UNF | SETC874762 |
| 7/16 | 20UNF | SETC874542 |
| 9/16 | 18UNF | SETC874622 |
| #4 | 48UNF | SETC874182 |
| #5 | 44UNF | SETC874222 |
| #6 | 40UNF | SETC874262 |
| #8 | 36UNF | SETC874302 |
| #10 | 32UNF | SETC874342 |
| #12 | 28UNF | SETC874382 |
