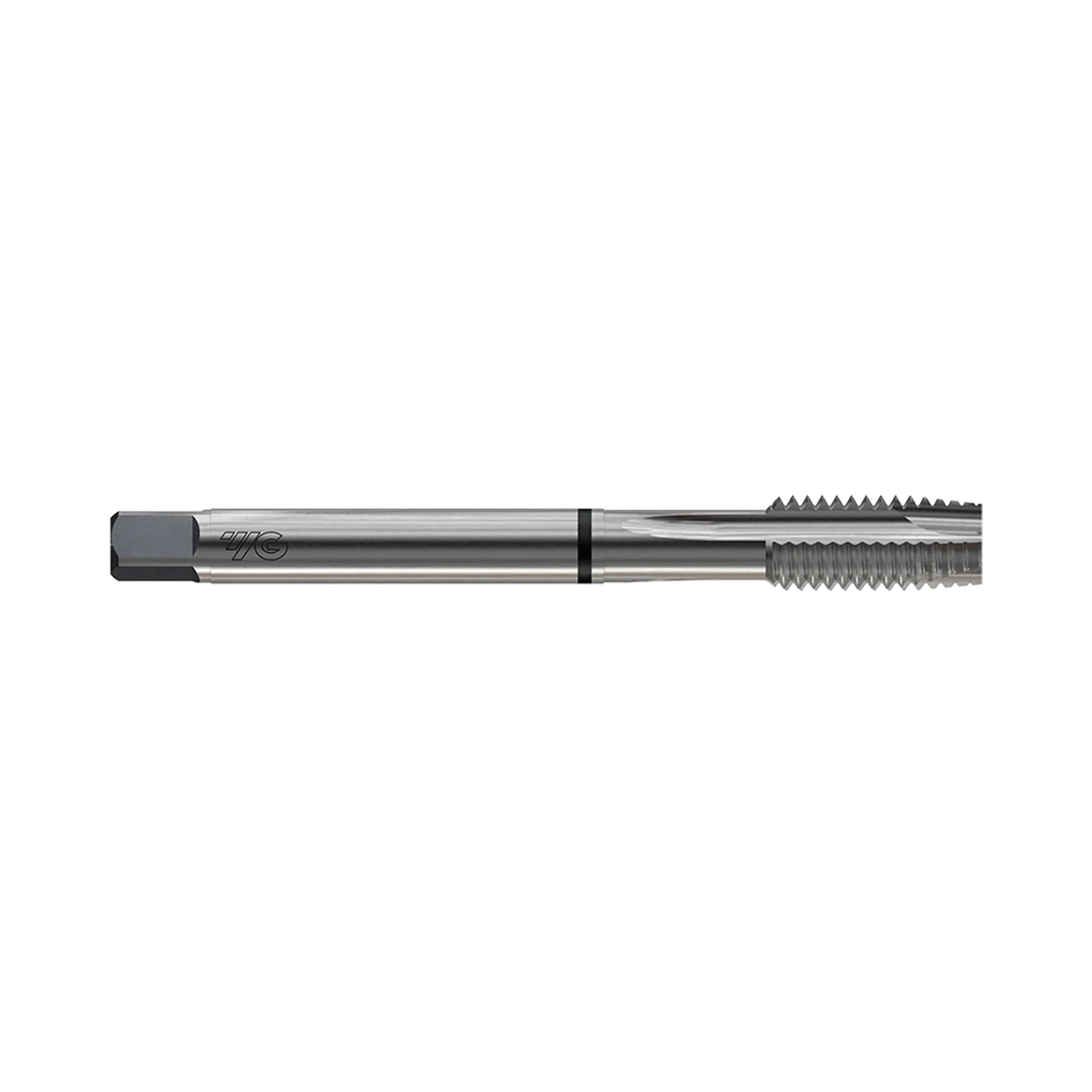

Excision (TC834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose
Excision (TC834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TC834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose is an HSS-E (M35), spiral-point geometry, DIN376 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
- YG-1 company has a patent.
- Specified features include HSS-E (M35), spiral-point geometry, DIN376.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and TPI, then confirm work material and hole type against current cutting data.
16 options are available in this product family. Use the selector to choose the required Size and TPI; each option remains tied to its exact part number.
- Material / grade: HSS-E
- Thread form: UNC
- Model / series reference: TC834
Specifications and available options
| Size | 1 1/2 1/4 3/4 3/8 5/8 5/16 7/8 7/16 9/16 #4 #5 #6 #8 #10 #12 |
|---|---|
| TPI | 8UNC 13UNC 20UNC 10UNC 16UNC 11UNC 18UNC 9UNC 14UNC 12UNC 40UNC 32UNC 24UNC |
Match each specification to its product code
| Size | TPI | Product code (SKU) |
|---|---|---|
| 1 | 8UNC | SETC834782 |
| 1/2 | 13UNC | SETC834562 |
| 1/4 | 20UNC | SETC834402 |
| 3/4 | 10UNC | SETC834702 |
| 3/8 | 16UNC | SETC834482 |
| 5/8 | 11UNC | SETC834642 |
| 5/16 | 18UNC | SETC834442 |
| 7/8 | 9UNC | SETC834742 |
| 7/16 | 14UNC | SETC834522 |
| 9/16 | 12UNC | SETC834602 |
| #4 | 40UNC | SETC834162 |
| #5 | 40UNC | SETC834202 |
| #6 | 32UNC | SETC834242 |
| #8 | 32UNC | SETC834282 |
| #10 | 24UNC | SETC834322 |
| #12 | 24UNC | SETC834362 |
