Excision (TC711) HSS-E (M35) Metric Spiral Flute for General Purpose

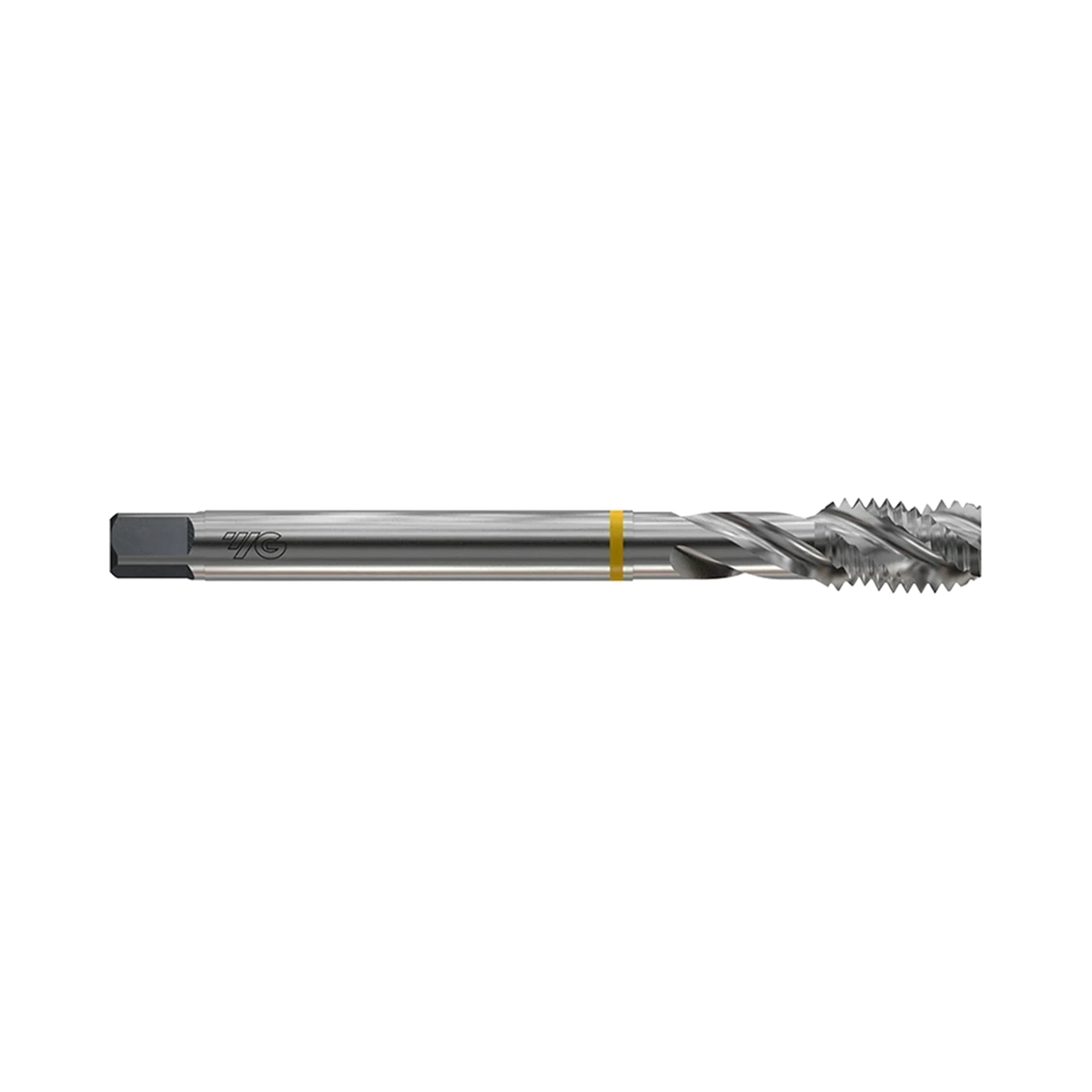

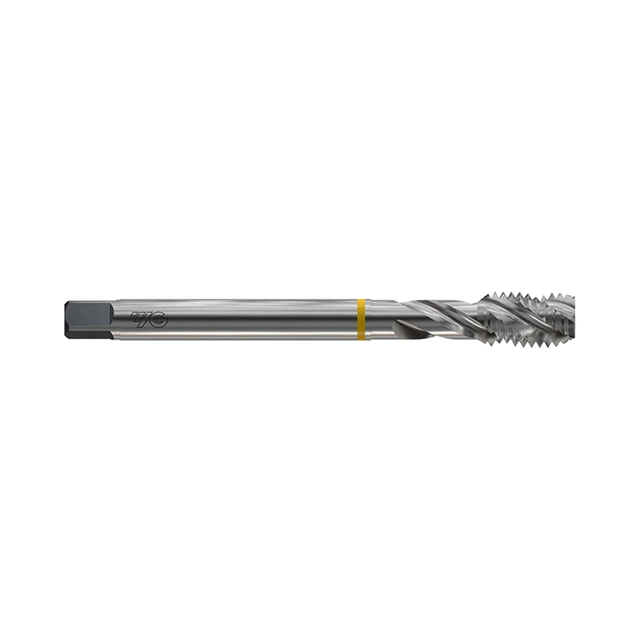

Excision (TC711) HSS-E (M35) Metric Spiral Flute for General Purpose. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TC711) HSS-E (M35) Metric Spiral Flute for General Purpose is an HSS-E (M35), spiral flutes, DIN371 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
- Specified features include HSS-E (M35), spiral flutes, DIN371.
- Thread and geometry details are grouped for faster application matching.
Choose by thread diameter, pitch, tap form and overall length, then confirm work material and hole type against current cutting data.
- Material / grade: HSS-E
- Thread form: metric
- Model / series reference: TC711
Specifications and available options
| Specification | Size: M2 | Pitch (mm): 0.4 Size: M2.5 | Pitch (mm): 0.45 Size: M3 | Pitch (mm): 0.5 Size: M3.5 | Pitch (mm): 0.6 Size: M4 | Pitch (mm): 0.7 HSS-E DIN371 SPIRAL FLUTE TAP M4.5X0.75 6H 70.0L Size: M5 | Pitch (mm): 0.8 Size: M6 | Pitch (mm): 1 Size: M7 | Pitch (mm): 1 Size: M8 | Pitch (mm): 1.25 Size: M10 | Pitch (mm): 1.5 Size: M12 | Pitch (mm): 1.75 Size: M14 | Pitch (mm): 2 Size: M16 | Pitch (mm): 2 Size: M18 | Pitch (mm): 2.5 Size: M20 | Pitch (mm): 2.5 Size: M22 | Pitch (mm): 2.5 Size: M24 | Pitch (mm): 3 Size: M27 | Pitch (mm): 3 Size: M30 | Pitch (mm): 3.5 |
|---|
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| Size: M2 | Pitch (mm): 0.4 | SETC711136 |
| Size: M2.5 | Pitch (mm): 0.45 | SETC711176 |
| Size: M3 | Pitch (mm): 0.5 | SETC711206 |
| Size: M3.5 | Pitch (mm): 0.6 | SETC711226 |
| Size: M4 | Pitch (mm): 0.7 | SETC711246 |
| HSS-E DIN371 SPIRAL FLUTE TAP M4.5X0.75 6H 70.0L | SETC711266 |
| Size: M5 | Pitch (mm): 0.8 | SETC711286 |
| Size: M6 | Pitch (mm): 1 | SETC711316 |
| Size: M7 | Pitch (mm): 1 | SETC711346 |
| Size: M8 | Pitch (mm): 1.25 | SETC711366 |
| Size: M10 | Pitch (mm): 1.5 | SETC711426 |
| Size: M12 | Pitch (mm): 1.75 | SETC711506 |
| Size: M14 | Pitch (mm): 2 | SETC711546 |
| Size: M16 | Pitch (mm): 2 | SETC711606 |
| Size: M18 | Pitch (mm): 2.5 | SETC711656 |
| Size: M20 | Pitch (mm): 2.5 | SETC711706 |
| Size: M22 | Pitch (mm): 2.5 | SETC711746 |
| Size: M24 | Pitch (mm): 3 | SETC711786 |
| Size: M27 | Pitch (mm): 3 | SETC711866 |
| Size: M30 | Pitch (mm): 3.5 | SETC711946 |
