Excision (TC633) HSS-E (M35) Metric Spiral Flute Long Shank Combo T...

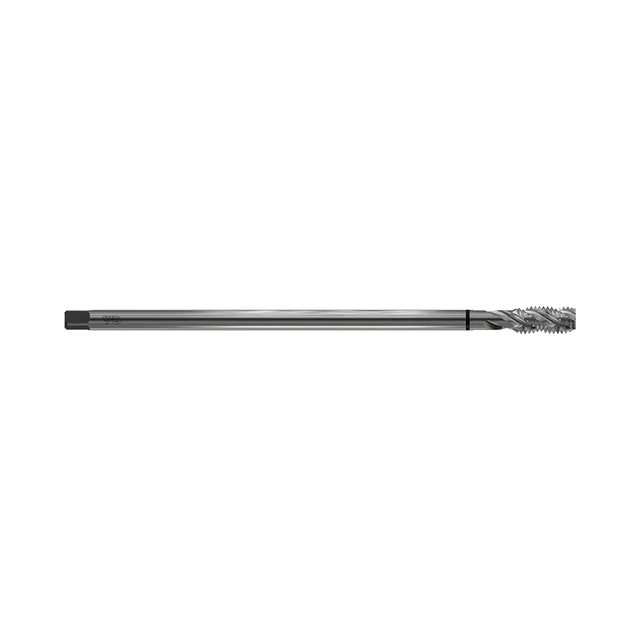

Excision (TC633) HSS-E (M35) Metric Spiral Flute Long Shank Combo Tap for Multi Purpose. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TC633) HSS-E (M35) Metric Spiral Flute Long Shank Combo Tap for Multi Purpose is an HSS-E (M35), spiral flutes, long length tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
- YG-1 company has a patent.
- Long Shank
- Specified features include HSS-E (M35), spiral flutes, long length.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and Pitch (mm), then confirm work material and hole type against current cutting data.
- Size: M3; Pitch (mm): 0.5 — Part TC633206
- Size: M4; Pitch (mm): 0.7 — Part TC633246
- Size: M5; Pitch (mm): 0.8 — Part TC633286
- Size: M6; Pitch (mm): 1 — Part TC633316
- Size: M8; Pitch (mm): 1.25 — Part TC633366
- Size: M10; Pitch (mm): 1.5 — Part TC633426
- Size: M12; Pitch (mm): 1.75 — Part TC633506
- Size: M14; Pitch (mm): 2 — Part TC633546
- Size: M16; Pitch (mm): 2 — Part TC633606
- Size: M20; Pitch (mm): 2.5 — Part TC633706
- Material / grade: HSS-E
- Thread form: metric
- Model / series reference: TC633
Specifications and options
| Size | M3 M4 M5 M6 M8 M10 M12 M14 M16 M20 |
|---|---|
| Pitch (mm) | 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2.5 |
Match each specification to its product code
| Size | Pitch (mm) | Product code (SKU) |
|---|---|---|
| M3 | 0.5 | SETC633206 |
| M4 | 0.7 | SETC633246 |
| M5 | 0.8 | SETC633286 |
| M6 | 1 | SETC633316 |
| M8 | 1.25 | SETC633366 |
| M10 | 1.5 | SETC633426 |
| M12 | 1.75 | SETC633506 |
| M14 | 2 | SETC633546 |
| M16 | 2 | SETC633606 |
| M20 | 2.5 | SETC633706 |
