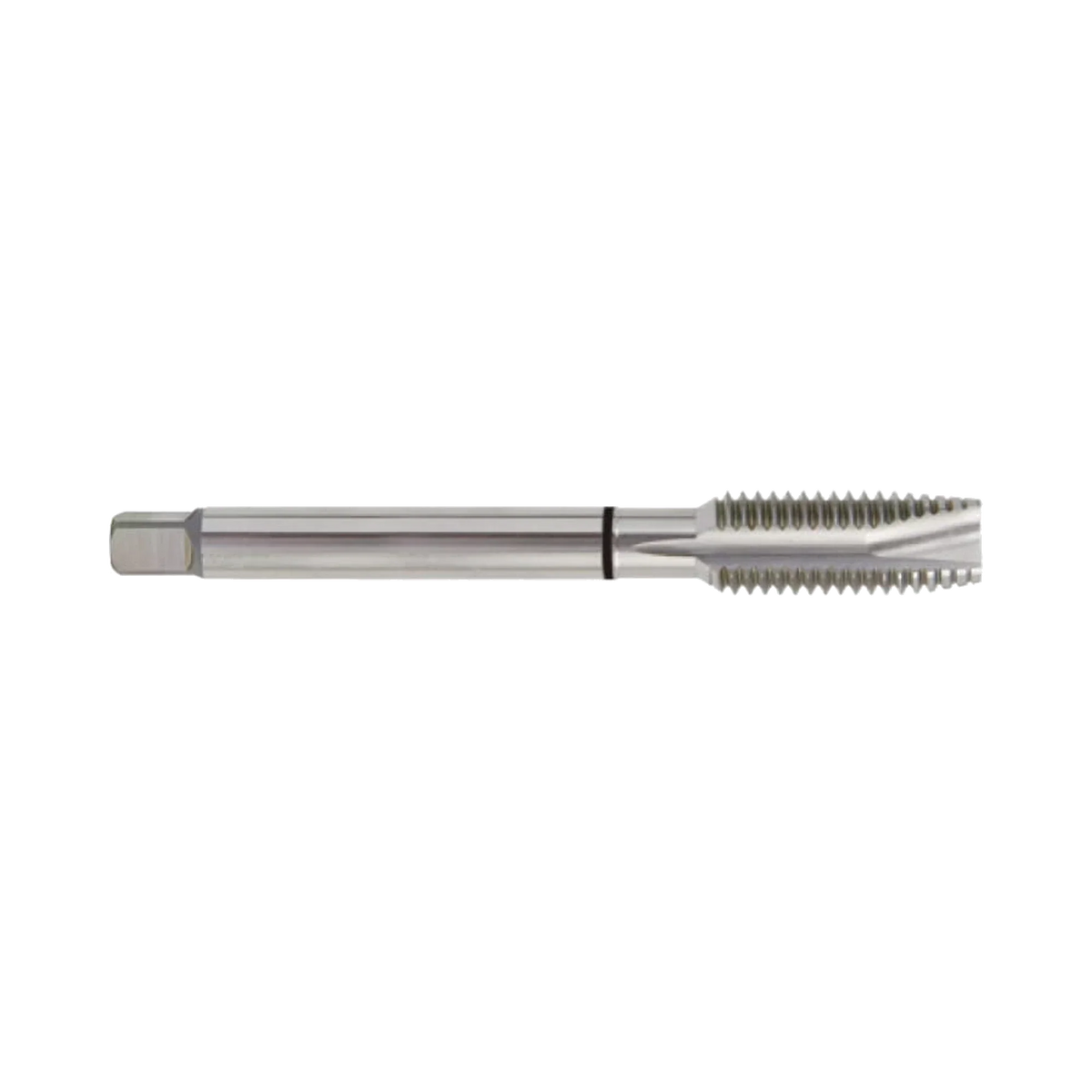

Excision (TC445) HSS-E (M35) Metric Gun Point Long Shank Combo Tap for Multi Purpose
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (TC445) HSS-E (M35) Metric Gun Point Long Shank Combo Tap ...
Excision (TC445) HSS-E (M35) Metric Gun Point Long Shank Combo Tap for Multi Purpose. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TC445) HSS-E (M35) Metric Gun Point Long Shank Combo Tap for Multi Purpose is an HSS-E (M35), spiral-point geometry tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
TC445 DIN COMBO Spiral Point Bright Long Shank tap ensures precise Metric Coarse threading across a wide material range. Made from HSS-E (M35) 5% Cobalt for durability, with a bright finish that prevents swarf buildup. Spiral point geometry suits through holes, while the long shank allows access to deep holes. YG-1’s patented design prevents over feeding and premature tap failure.
- Specified features include HSS-E (M35), spiral-point geometry.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and Pitch (mm), then confirm work material and hole type against current cutting data.
- Size: M3; Pitch (mm): 0.5 — Part TC445206
- Size: M4; Pitch (mm): 0.7 — Part TC445246
- Size: M5; Pitch (mm): 0.8 — Part TC445286
- Size: M6; Pitch (mm): 1 — Part TC445316
- Size: M8; Pitch (mm): 1.25 — Part TC445366
- Size: M10; Pitch (mm): 1.5 — Part TC445426
- Size: M12; Pitch (mm): 1.75 — Part TC445506
- Size: M14; Pitch (mm): 2 — Part TC445546
- Size: M16; Pitch (mm): 2 — Part TC445606
- Size: M20; Pitch (mm): 2.5 — Part TC445706
- Material / grade: HSS-E
- Thread form: metric
- Model / series reference: TC445
Specifications and options
| Size | M3 M4 M5 M6 M8 M10 M12 M14 M16 M20 |
|---|---|
| Pitch (mm) | 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2.5 |
Match each specification to its product code
| Size | Pitch (mm) | Product code (SKU) |
|---|---|---|
| M3 | 0.5 | SETC445206 |
| M4 | 0.7 | SETC445246 |
| M5 | 0.8 | SETC445286 |
| M6 | 1 | SETC445316 |
| M8 | 1.25 | SETC445366 |
| M10 | 1.5 | SETC445426 |
| M12 | 1.75 | SETC445506 |
| M14 | 2 | SETC445546 |
| M16 | 2 | SETC445606 |
| M20 | 2.5 | SETC445706 |
