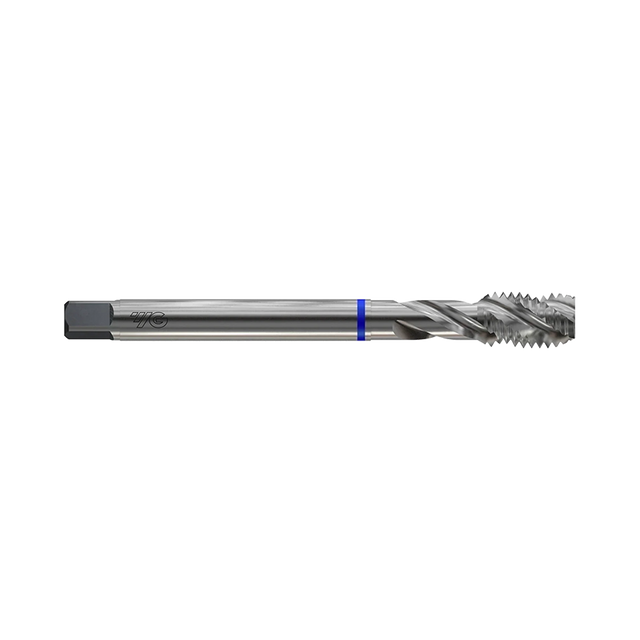

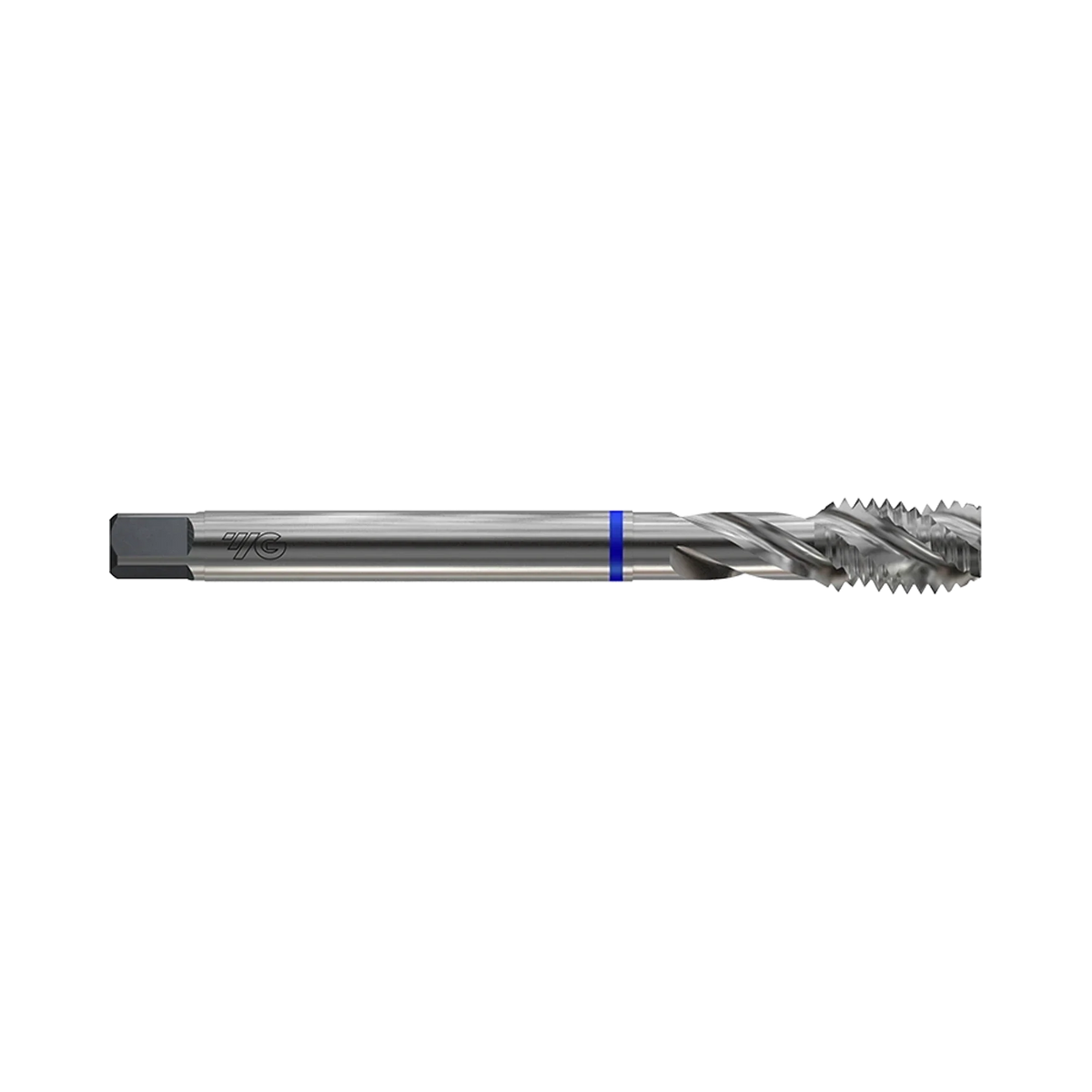

Excision (TC163) HSS-E (M35) Metric Spiral Flute for Aluminum
Excision (TC163) HSS-E (M35) Metric Spiral Flute for Aluminum. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TC163) HSS-E (M35) Metric Spiral Flute for Aluminum is an HSS-E (M35), spiral flutes, DIN371 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
The YG-1 TC163 Series M4 x 0.7mm HSS-E (M35) Spiral Flute Tap is designed for precision tapping in non-ferrous materials such as aluminium, copper, and titanium. Its 5% cobalt substrate ensures heat resistance, while the bright finish reduces chip adhesion. The interrupted pitch and spiral flute geometry enable efficient chip evacuation when tapping blind holes.
- Specified features include HSS-E (M35), spiral flutes, DIN371.
- Thread and geometry details are grouped for faster application matching.
Choose by thread diameter, pitch, tap form and overall length, then confirm work material and hole type against current cutting data.
- Material / grade: HSS-E
- Thread form: metric
- Model / series reference: TC163
Specifications and available options
| Specification | Size: M2 Size: M2.2 Size: M2.3 Size: M2.5 HSS-E DIN371 SPIRAL FLUTE TAP M2.6X0.45 6H 50.0L Size: M3 Size: M3.5 Size: M4 Size: M4.5 Size: M5 Size: M6 Size: M7 Size: M8 Size: M9 Size: M10 Size: M11 Size: M12 Size: M14 Size: M16 HSS-E DIN376 SPIRAL FLUTE TAP M18X2.5 6H 125.0L Size: M20 Size: M22 Size: M24 Size: M27 Size: M30 |
|---|
