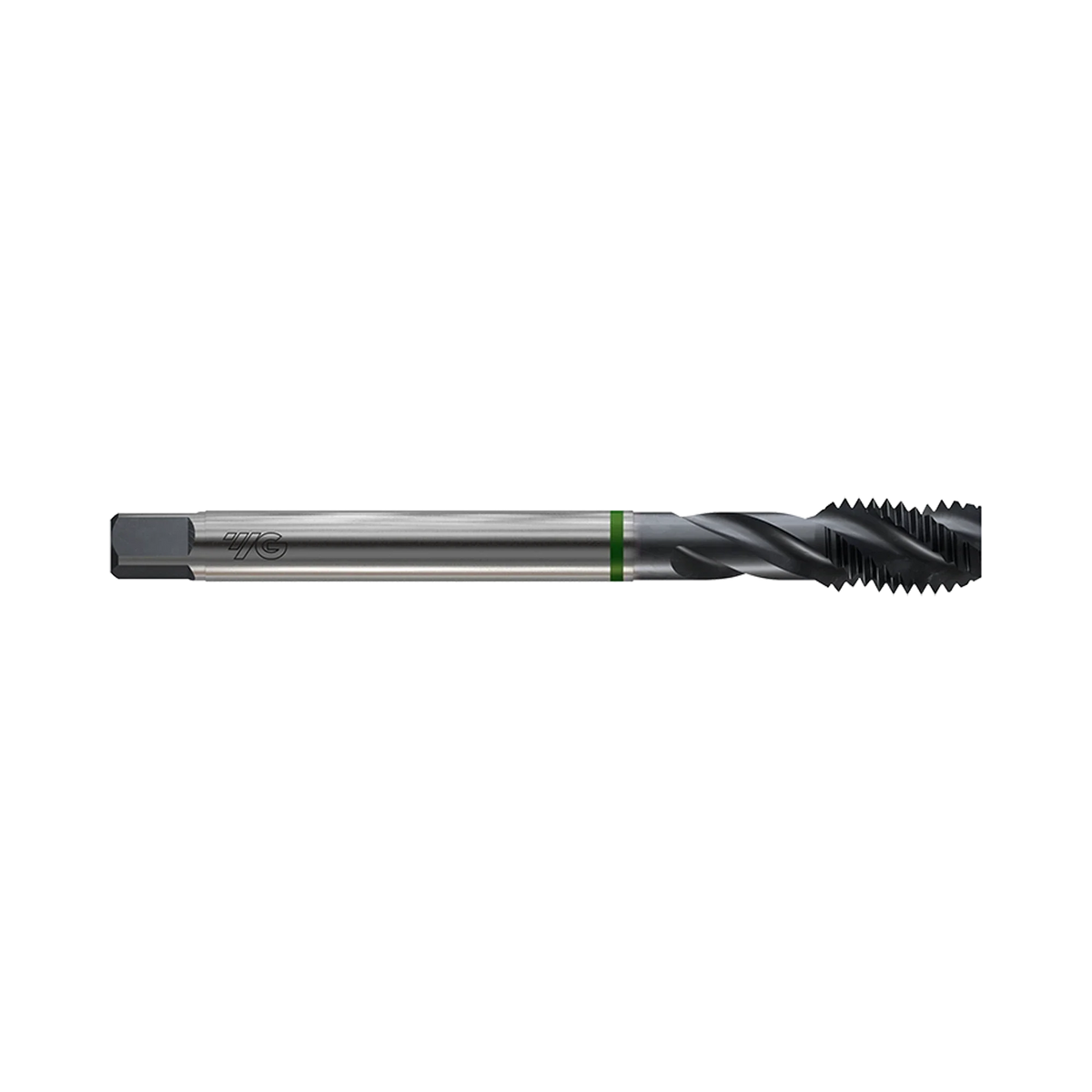

Excision (TB924) HSS-E (M35) UNF Spiral Flute for Stainless Steel
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (TB924) HSS-E (M35) UNF Spiral Flute for Stainless Steel
Excision (TB924) HSS-E (M35) UNF Spiral Flute for Stainless Steel. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TB924) HSS-E (M35) UNF Spiral Flute for Stainless Steel is an HSS-E (M35), spiral flutes, DIN374 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
The YG-1 TB924 Series UNF Spiral Flute Tap is designed for high-performance tapping in stainless steel, soft steel, and nickel or titanium alloys. Made from HSS-E (M35) with 5% cobalt, it provides excellent heat resistance and tool strength. The VAP surface treatment minimises friction, while the spiral flute geometry ensures efficient chip evacuation in blind holes.
- Specified features include HSS-E (M35), spiral flutes, DIN374.
- Thread and geometry details are grouped for faster application matching.
Choose by thread diameter, pitch, tap form and overall length, then confirm work material and hole type against current cutting data.
- Material / grade: HSS-E
- Thread form: UNF
- Model / series reference: TB924
Specifications and available options
| Specification | Size: 1/2 | TPI: 20UNF Size: 3/8 | TPI: 24UNF HSS-E DIN371 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING #4X48UNFX2BX56.0 Size: 5/16 | TPI: 24UNF HSS-E DIN371 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING #6X40UNFX2BX56.0 Size: 7/8 | TPI: 14UNF Size: 7/16 | TPI: 20UNF Size: 9/16 | TPI: 18UNF Size: #5 | TPI: 44UNF Size: #8 | TPI: 36UNF Size: #10 | TPI: 32UNF Size: #12 | TPI: 28UNF HSS-E DIN371 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 1/4-28UNF 2B 80.0L HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 1"-12UNF 2B 140.0L HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 3/4-16UNF 2B 110.0L HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 5/8-18UNF 2B 100.0L |
|---|
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| Size: 1/2 | TPI: 20UNF | SETB924582 |
| Size: 3/8 | TPI: 24UNF | SETB924502 |
| HSS-E DIN371 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING #4X48UNFX2BX56.0 | SETB924182 |
| Size: 5/16 | TPI: 24UNF | SETB924462 |
| HSS-E DIN371 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING #6X40UNFX2BX56.0 | SETB924262 |
| Size: 7/8 | TPI: 14UNF | SETB924762 |
| Size: 7/16 | TPI: 20UNF | SETB924542 |
| Size: 9/16 | TPI: 18UNF | SETB924622 |
| Size: #5 | TPI: 44UNF | SETB924222 |
| Size: #8 | TPI: 36UNF | SETB924302 |
| Size: #10 | TPI: 32UNF | SETB924342 |
| Size: #12 | TPI: 28UNF | SETB924382 |
| HSS-E DIN371 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 1/4-28UNF 2B 80.0L | SETB924422 |
| HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 1"-12UNF 2B 140.0L | SETB924802 |
| HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 3/4-16UNF 2B 110.0L | SETB924722 |
| HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING 5/8-18UNF 2B 100.0L | SETB924662 |
