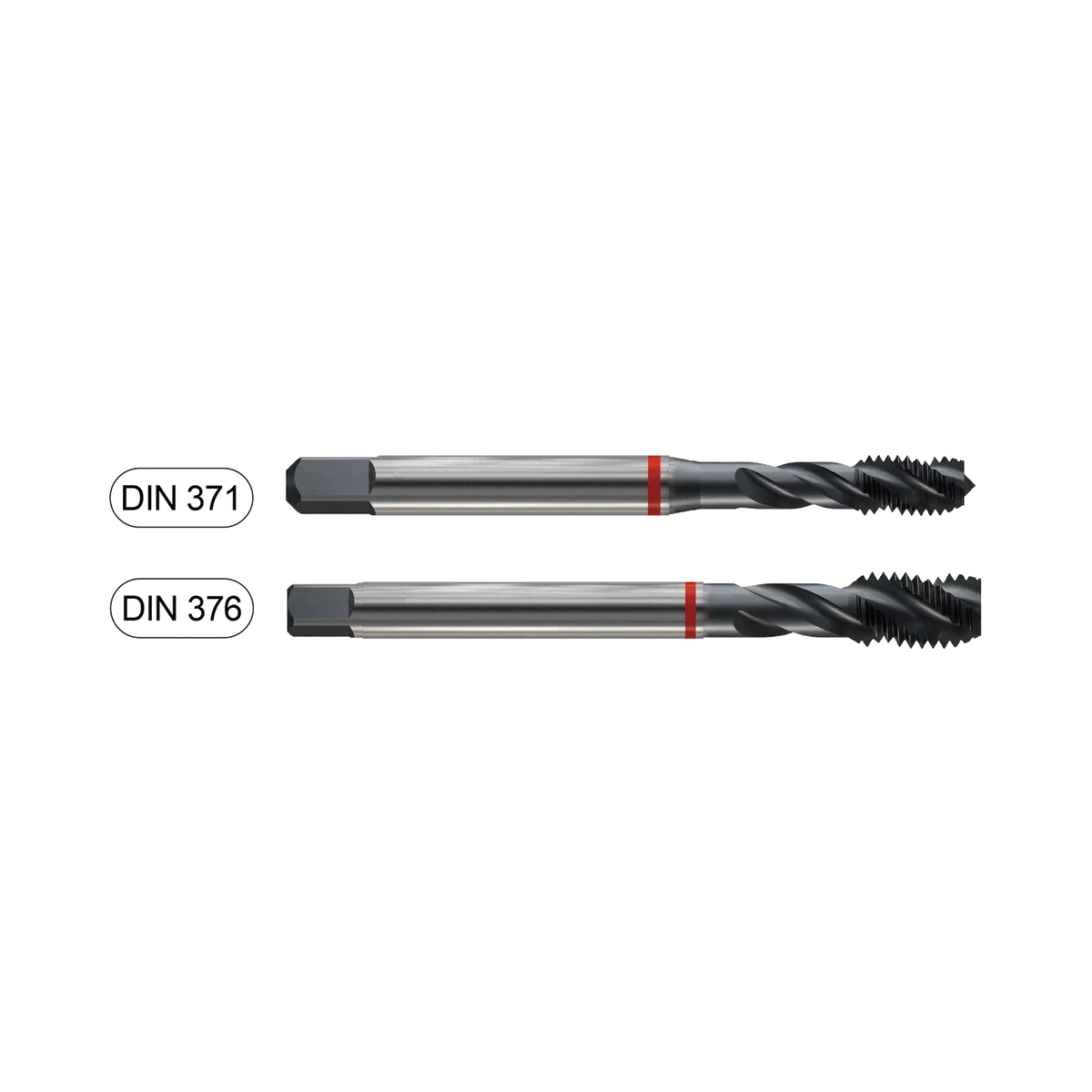

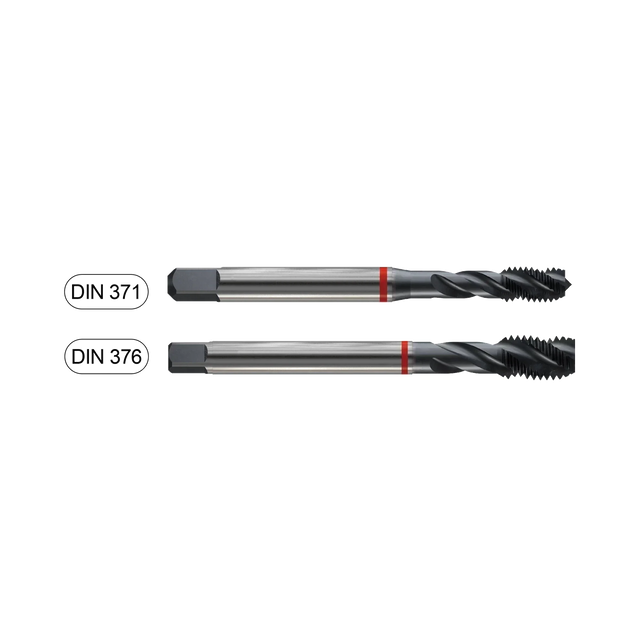

Excision (TB313) HSS-E (M35) Metric Spiral Flute for Hardened
Excision (TB313) HSS-E (M35) Metric Spiral Flute for Hardened. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TB313) HSS-E (M35) Metric Spiral Flute for Hardened is an HSS-E (M35), spiral flutes, DIN371 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
- * DIN profile not ISO
- Specified features include HSS-E (M35), spiral flutes, DIN371.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and Pitch (mm), then confirm work material and hole type against current cutting data.
- Size: M3; Pitch (mm): 0.5 — Part TB313206
- Size: M4; Pitch (mm): 0.7 — Part TB313246
- Size: M6; Pitch (mm): 1 — Part TB313316
- Size: M8; Pitch (mm): 1.25 — Part TB313366
- Size: M10; Pitch (mm): 1.5 — Part TB313426
- Size: M12; Pitch (mm): 1.75 — Part TB313506
- Size: M16; Pitch (mm): 2 — Part TB313606
- Material / grade: HSS-E
- Thread form: metric
- Model / series reference: TB313
Specifications and options
| Size | M3 M4 M6 M8 M10 M12 M16 |
|---|---|
| Pitch (mm) | 0.5 0.7 1 1.25 1.5 1.75 2 |
Match each specification to its product code
| Size | Pitch (mm) | Product code (SKU) |
|---|---|---|
| M3 | 0.5 | SETB313206 |
| M4 | 0.7 | SETB313246 |
| M6 | 1 | SETB313316 |
| M8 | 1.25 | SETB313366 |
| M10 | 1.5 | SETB313426 |
| M12 | 1.75 | SETB313506 |
| M16 | 2 | SETB313606 |
