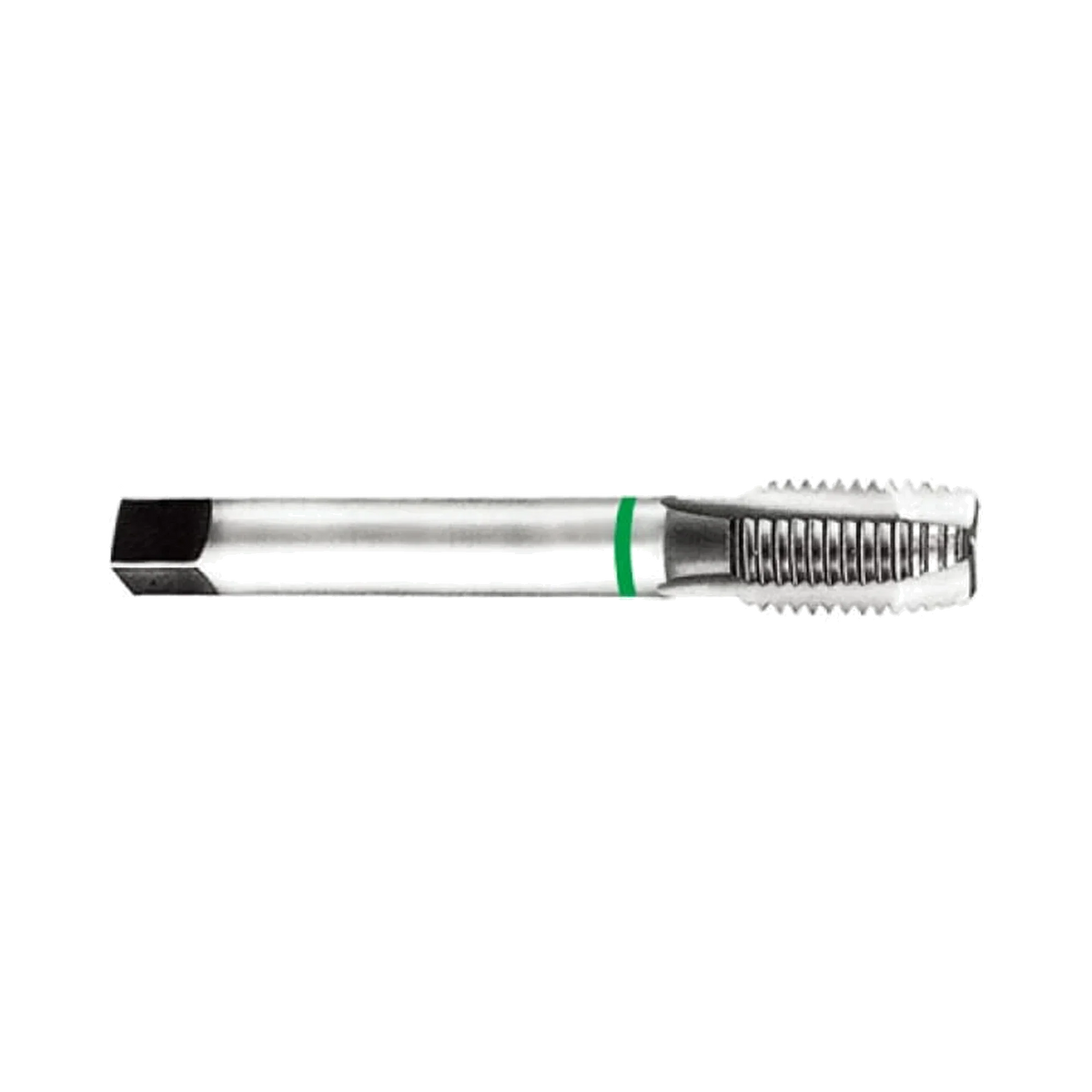

Excision (TB274) HSS-E (M35) UNF Gun Point for Stainless Steel
Excision (TB274) HSS-E (M35) UNF Gun Point for Stainless Steel. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TB274) HSS-E (M35) UNF Gun Point for Stainless Steel is an HSS-E (M35), spiral-point geometry, DIN374 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
The YG-1 TB274 UNF HSS-E (M35) Spiral Point (Gun Point) Tap is built for through holes. It machines stainless steel, soft steels, structural steel, and titanium or nickel alloys with consistent accuracy. VAP surface treatment and Steam Homo finish reduce friction and stabilize cutting. A thick web supports higher cutting speeds, and a patented design prevents overfeeding and failures.
- Specified features include HSS-E (M35), spiral-point geometry, DIN374.
- Thread and geometry details are grouped for faster application matching.
Choose by thread diameter, pitch, tap form and overall length, then confirm work material and hole type against current cutting data.
- HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 1/2-20UNF 2B 100.0L — Part TB274582
- HSS-E DIN371 GUN POINT TAP STEAM HOMO SHANK GRINDING 1/4-28UNF 2B 80.0L — Part TB274422
- HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 3/4-16UNF 2B 110.0L — Part TB274722
- HSS-E DIN371 GUN POINT TAP STEAM HOMO SHANK GRINDING 3/8-24UNF 2B 100.0L — Part TB274502
- HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 5/8-18UNF 2B 100.0L — Part TB274662
- HSS-E DIN371 GUN POINT TAP STEAM HOMO SHANK GRINDING 5/16-24UNF 2B 90.0L — Part TB274462
- HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 7/16-20UNF 2B 100.0L — Part TB274542
- HSS-E DIN371 GUN POINT TAP STEAM HOMO SHANK GRINDING #10-32UNF 2B 70.0L — Part TB274342
- HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 1"-12UNF 2B 140.0L — Part TB274802
- HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 7/8-14UNF 2B 125.0L — Part TB274762
- HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 9/16-18UNF 2B 100.0L — Part TB274622
- Material / grade: HSS-E
- Thread form: UNF
- Model / series reference: TB274
Specifications and options
| Specification | Size: 1/2 | TPI: 20UNF Size: 1/4 | TPI: 28UNF Size: 3/4 | TPI: 16UNF Size: 3/8 | TPI: 24UNF Size: 5/8 | TPI: 18UNF Size: 5/16 | TPI: 24UNF Size: 7/16 | TPI: 20UNF Size: #10 | TPI: 32UNF HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 1"-12UNF 2B 140.0L HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 7/8-14UNF 2B 125.0L HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 9/16-18UNF 2B 100.0L |
|---|
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| Size: 1/2 | TPI: 20UNF | SETB274582 |
| Size: 1/4 | TPI: 28UNF | SETB274422 |
| Size: 3/4 | TPI: 16UNF | SETB274722 |
| Size: 3/8 | TPI: 24UNF | SETB274502 |
| Size: 5/8 | TPI: 18UNF | SETB274662 |
| Size: 5/16 | TPI: 24UNF | SETB274462 |
| Size: 7/16 | TPI: 20UNF | SETB274542 |
| Size: #10 | TPI: 32UNF | SETB274342 |
| HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 1"-12UNF 2B 140.0L | SETB274802 |
| HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 7/8-14UNF 2B 125.0L | SETB274762 |
| HSS-E DIN374 GUN POINT TAP STEAM HOMO SHANK GRINDING 9/16-18UNF 2B 100.0L | SETB274622 |
