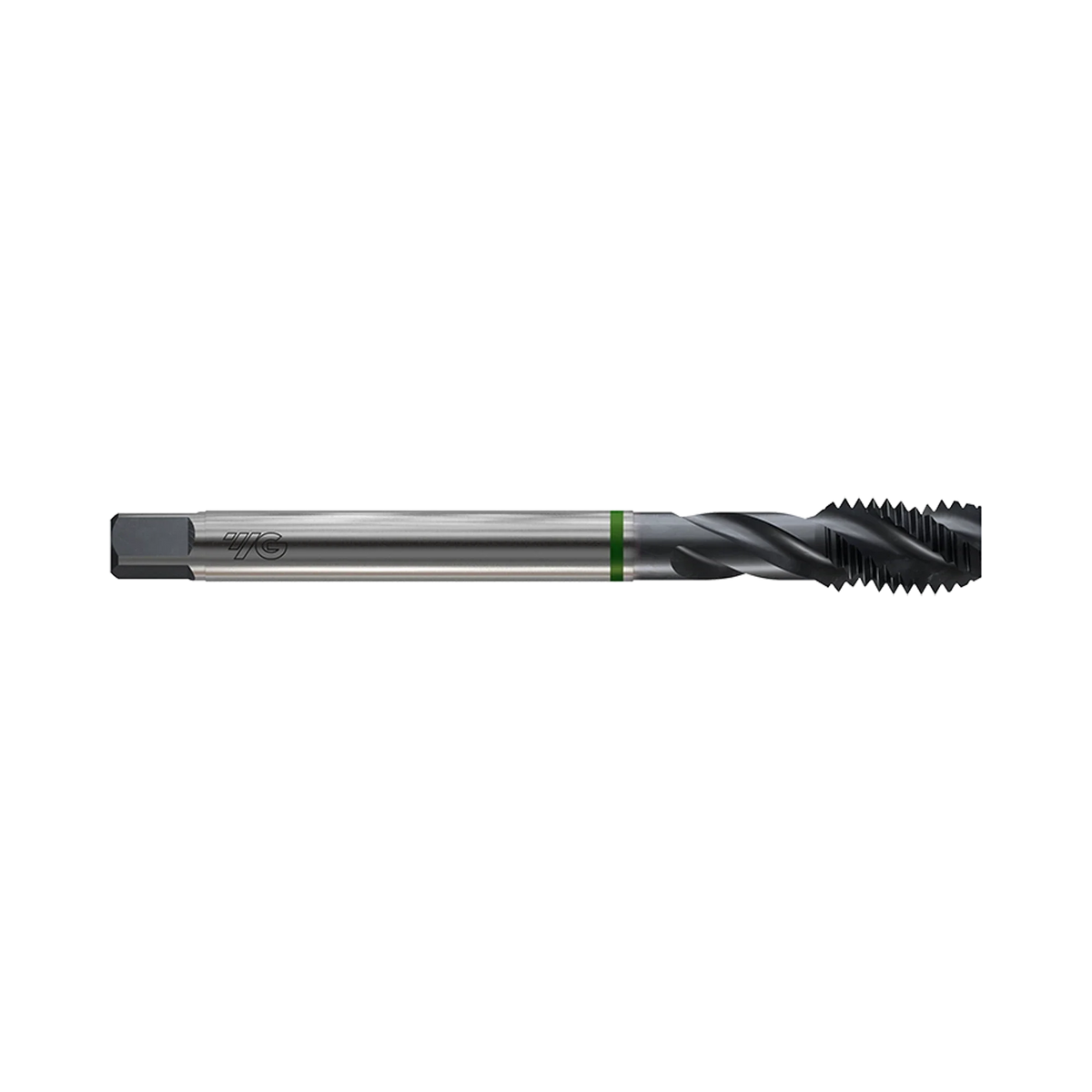

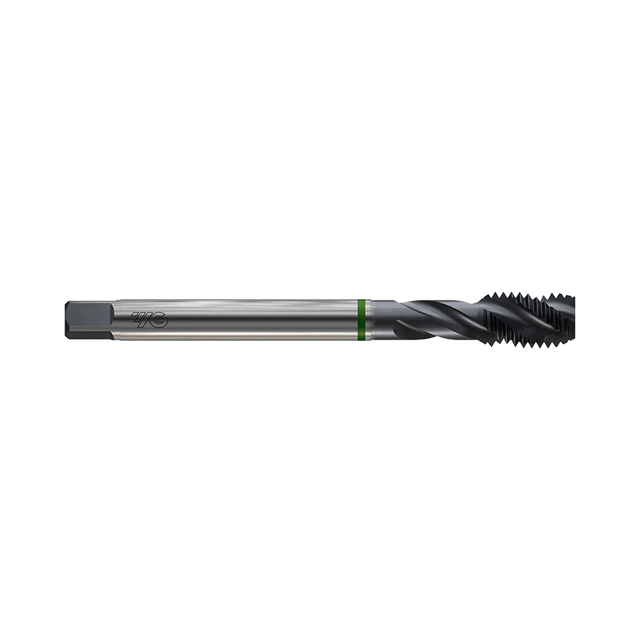

Excision (TB183) HSS-E (M35) Metric Fine Spiral Flute for Stainless Steel
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (TB183) HSS-E (M35) Metric Fine Spiral Flute for Stainless...
Excision (TB183) HSS-E (M35) Metric Fine Spiral Flute for Stainless Steel. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(TB183) HSS-E (M35) Metric Fine Spiral Flute for Stainless Steel is an HSS-E (M35), spiral flutes, DIN374 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
- Specified features include HSS-E (M35), spiral flutes, DIN374.
- Thread and geometry details are grouped for faster application matching.
Choose by thread diameter, pitch, tap form and overall length, then confirm work material and hole type against current cutting data.
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M5X0.5 6H 70.0L — Part TB183296
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M6X0.75 6H 80.0L — Part TB183326
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M10X1.0 6H 90.0L — Part TB183446
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M10X1.25 6H 100.0L — Part TB183436
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M12X1.0 6H 100.0L — Part TB183536
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M12X1.25 6H 100.0L — Part TB183526
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M12X1.5 6H 100.0L — Part TB183516
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M16X1.5 6H 100.0L — Part TB183616
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M18X1.5 6H 110.0L — Part TB183676
- HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M20X1.5 6H 125.0L — Part TB183726
- Material / grade: HSS-E
- Thread form: metric fine
- Model / series reference: TB183
Specifications and options
| Specification | Size: M5 | Pitch (mm): 0.5 Size: M6 | Pitch (mm): 0.75 HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M10X1.0 6H 90.0L Size: M10 | Pitch (mm): 1.25 HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M12X1.0 6H 100.0L HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M12X1.25 6H 100.0L Size: M12 | Pitch (mm): 1.5 Size: M16 | Pitch (mm): 1.5 Size: M18 | Pitch (mm): 1.5 Size: M20 | Pitch (mm): 1.5 |
|---|
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| Size: M5 | Pitch (mm): 0.5 | SETB183296 |
| Size: M6 | Pitch (mm): 0.75 | SETB183326 |
| HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M10X1.0 6H 90.0L | SETB183446 |
| Size: M10 | Pitch (mm): 1.25 | SETB183436 |
| HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M12X1.0 6H 100.0L | SETB183536 |
| HSS-E DIN374 SPIRAL FLUTE TAP STEAM HOMO SHANK GRINDING M12X1.25 6H 100.0L | SETB183526 |
| Size: M12 | Pitch (mm): 1.5 | SETB183516 |
| Size: M16 | Pitch (mm): 1.5 | SETB183616 |
| Size: M18 | Pitch (mm): 1.5 | SETB183676 |
| Size: M20 | Pitch (mm): 1.5 | SETB183726 |
