Excision (T0993) Carbide, Metric Straight Flute Tap
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.

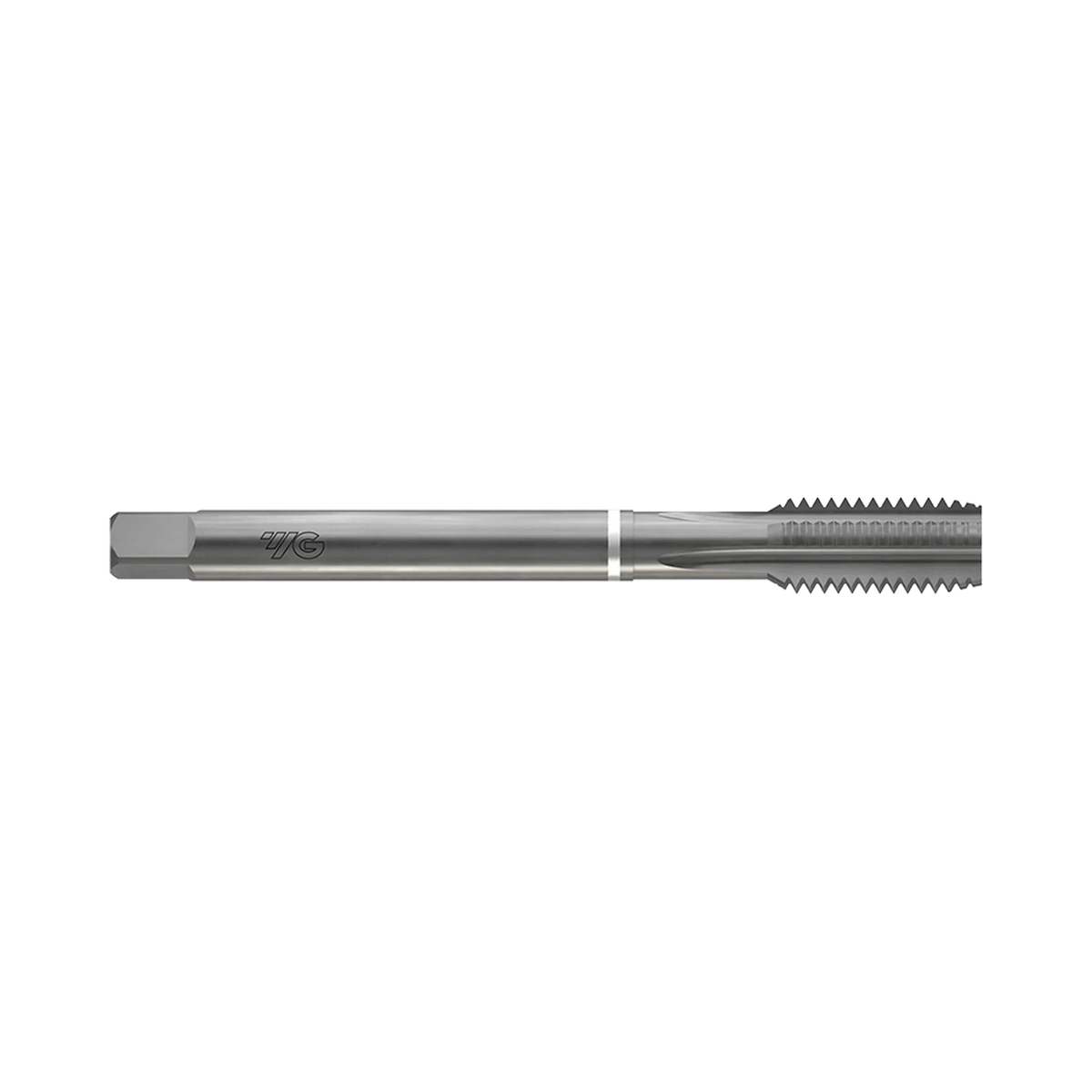

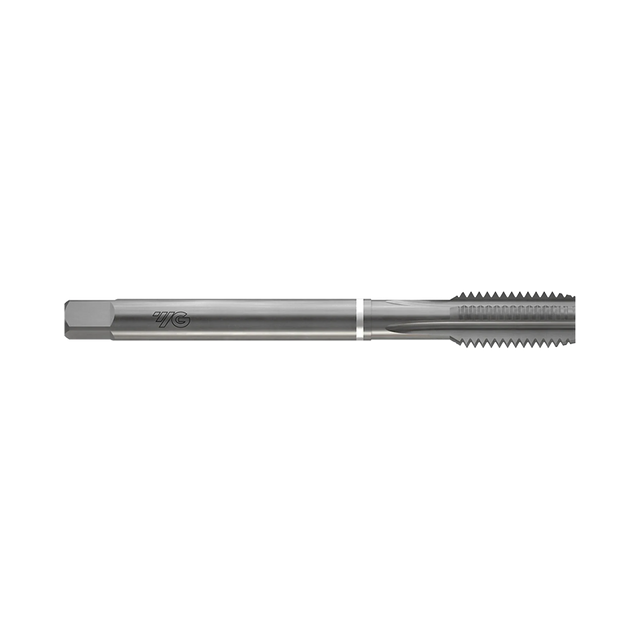

Excision (T0993) Carbide, Metric Straight Flute Tap
Excision (T0993) Carbide, Metric Straight Flute Tap. Taps cut internal threads in a prepared hole.
Choosing the right specification
Match the thread form, diameter and pitch first, then choose the lead and flute geometry for the hole and material.
Product details
(T0993) Carbide, Metric Straight Flute Tap is a carbide, straight flutes, DIN371 tap range for cutting internal threads. Thread size, pitch, geometry and length remain tied to the selected option.
Product details
- Carbide tap can increase tool life longer than HSS taps due to higher hardness. Suitable for cast iron and high silicon aluminiums.
- Specified features include carbide, straight flutes, DIN371.
- Thread and geometry details are grouped for faster application matching.
Choose by Size and Pitch, then confirm work material and hole type against current cutting data.
- Size: M3; Pitch: 0.5 — Part T0993206
- Size: M3.5; Pitch: 0.6 — Part T0993226
- Size: M4; Pitch: 0.7 — Part T0993246
- Size: M5; Pitch: 0.8 — Part T0993286
- Size: M6; Pitch: 1 — Part T0993316
- Size: M8; Pitch: 1.25 — Part T0993366
- Size: M10; Pitch: 1.5 — Part T0993426
- Size: M12; Pitch: 1.75 — Part T0993506
- Size: M14; Pitch: 2 — Part T0993546
- Size: M16; Pitch: 2 — Part T0993606
- Size: M18; Pitch: 2.5 — Part T0993656
- Size: M20; Pitch: 2.5 — Part T0993706
- Thread form: metric
- Model / series reference: T0993
Specifications and options
| Size | M3 M3.5 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 |
|---|---|
| Pitch | 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75 2 2.5 |
Match each specification to its product code
| Size | Pitch | Product code (SKU) |
|---|---|---|
| M3 | 0.5 | SET0993206 |
| M3.5 | 0.6 | SET0993226 |
| M4 | 0.7 | SET0993246 |
| M5 | 0.8 | SET0993286 |
| M6 | 1 | SET0993316 |
| M8 | 1.25 | SET0993366 |
| M10 | 1.5 | SET0993426 |
| M12 | 1.75 | SET0993506 |
| M14 | 2 | SET0993546 |
| M16 | 2 | SET0993606 |
| M18 | 2.5 | SET0993656 |
| M20 | 2.5 | SET0993706 |
