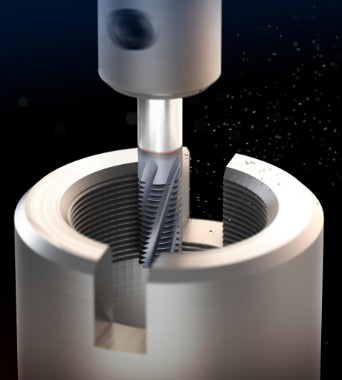

Excision (L19E1) Carbide Miniature Metric Thread Mill for Hard Materials
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (L19E1) Carbide Miniature Metric Thread Mill for Hard Mate...
Excision (L19E1) Carbide Miniature Metric Thread Mill for Hard Materials. End mills and milling cutters remove material with their cutting end and flutes.
Choosing the right specification
Match cutting diameter, shank, length of cut and reach. Flute count, end shape and coating identify different cutter configurations.
Product details
Product details
- Left hand Cut (CNC code : M04)
- Short thread length
- Straight Flute
- The work direction is from top to bottom (Climb Milling)
- For Internal Thread
- Thread Depth : 2.0 x D Max.
- Specified features include carbide.
Choose by Size and Pitch (mm), then confirm the exact part number for the required cutter.
- Size: M2; Pitch (mm): 0.4 — Part L19E1130
- Size: M2.2; Pitch (mm): 0.45 — Part L19E1150
- Size: M2.5; Pitch (mm): 0.45 — Part L19E1170
- Size: M3; Pitch (mm): 0.5 — Part L19E1200
- Size: M4; Pitch (mm): 0.7 — Part L19E1240
- Size: M5; Pitch (mm): 0.8 — Part L19E1280
- Size: M6; Pitch (mm): 1 — Part L19E1310
- Size: M8; Pitch (mm): 1.25 — Part L19E1360
- Size: M10; Pitch (mm): 1.5 — Part L19E1420
- Size: M12; Pitch (mm): 1.75 — Part L19E1500
- Thread form: metric
- Model / series reference: L19E1
Specifications and options
| Size | M2 M2.2 M2.5 M3 M4 M5 M6 M8 M10 M12 |
|---|---|
| Pitch (mm) | 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 |
Match each specification to its product code
| Size | Pitch (mm) | Product code (SKU) |
|---|---|---|
| M2 | 0.4 | SEL19E1130 |
| M2.2 | 0.45 | SEL19E1150 |
| M2.5 | 0.45 | SEL19E1170 |
| M3 | 0.5 | SEL19E1200 |
| M4 | 0.7 | SEL19E1240 |
| M5 | 0.8 | SEL19E1280 |
| M6 | 1 | SEL19E1310 |
| M8 | 1.25 | SEL19E1360 |
| M10 | 1.5 | SEL19E1420 |
| M12 | 1.75 | SEL19E1500 |
