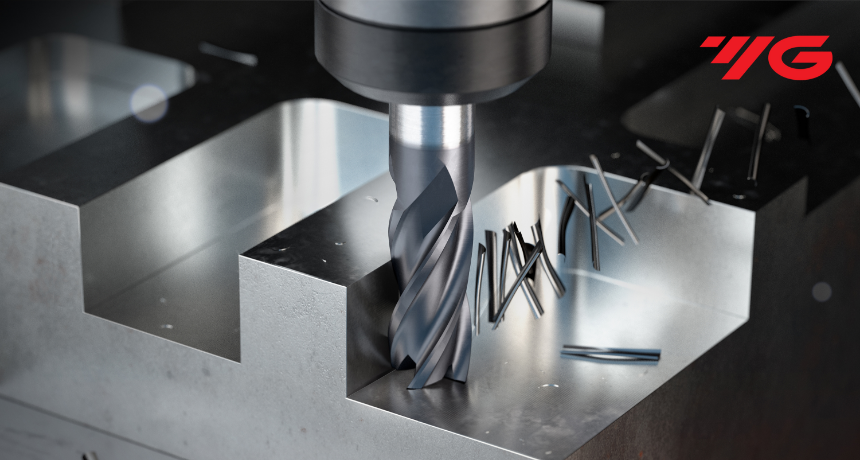

Excision (GYF95) HSS-PM, Only One Multi Flute, Multiple Helix Corner Radius Coated Roughing End Mill, Short L

Excision (GYF95) HSS-PM, Only One Multi Flute, Multiple Helix Corner Radius Coated Roughing End Mill, Short L. End mills and milling cutters remove material with their cutting end and flutes.

Choosing the right specification

Match cutting diameter, shank, length of cut and reach. Flute count, end shape and coating identify different cutter configurations.

Product details

Product details

The YG-1 GYF95 series Only One PM60 Powder Metal Cutters have 3-5 flutes and a weldon shank. The fine pitch rippers range in diameter from 6mm-25mm and have a 45° corner radiusaration to protect the cutting edge in demanding roughing operations. They provide excellent performance on stainless steels, pre-hardened steels, carbon steels, alloy steels and cast iron. The Multiple helix design reduces vibration in heavier machining applications, increases tool life and improves metal removal rates. Ideal for applications where carbide is too brittle, but HSS wears too fast.

• ASP60 Powder Metal substrate gives similar cutting performance and wear resistance to general carbide cutters.
• YG-1's own high performance 'Y1200' coating allows for machining up to 1200°C.
• The most cost effective milling cutters from YG-1 in unstable machining conditions.
• Exceptional tool life and performance on CNC, NC and conventional milling machines in general machining.
• Wide range of geometries including corner radiuss, coarse & fine pitch roughers and multiple helix.
• Available on weldon shanks.
• Fine pitch ripper style is ideal for roughing applications and gives a good surface finish.
• Multiple helix makes these milling cutters excellent for slotting and also dramatically reduces vibration, especially in large depth of cut and semi roughing operations.

Specifications

• Specified features include HSS, corner-radius profile.

Choose by Mill Diameter (mm) and Corner Radius (mm), then confirm the exact part number for the required cutter.

• Mill Diameter (mm): 6; Corner Radius (mm): R0.5 — Part GYF95060
• Mill Diameter (mm): 7; Corner Radius (mm): R0.5 — Part GYF95070
• Mill Diameter (mm): 8; Corner Radius (mm): R0.5 — Part GYF95080
• Mill Diameter (mm): 9; Corner Radius (mm): R0.5 — Part GYF95090
• Mill Diameter (mm): 10; Corner Radius (mm): R0.5 — Part GYF95100
• Mill Diameter (mm): 12; Corner Radius (mm): R0.5 — Part GYF95120
• Mill Diameter (mm): 14; Corner Radius (mm): R1.0 — Part GYF95140
• Mill Diameter (mm): 16; Corner Radius (mm): R1.0 — Part GYF95160
• Mill Diameter (mm): 18; Corner Radius (mm): R1.0 — Part GYF95180
• Mill Diameter (mm): 20; Corner Radius (mm): R1.0 — Part GYF95200
• Mill Diameter (mm): 25; Corner Radius (mm): R1.0 — Part GYF95250
