Excision  |  SKU: SEDT693040

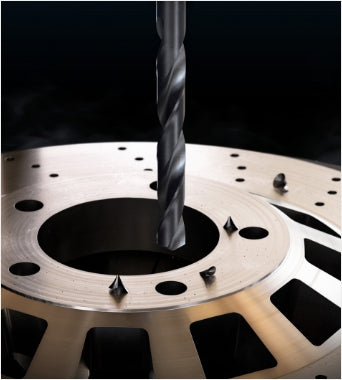

Excision (DT693) HSS-E (M35) Extra Long series Drill for Deep Hole (TiAlN Coated) Worm Pattern

$89.49
Tax included Shipping calculated at checkout.

Pickup available at Head Office

Usually ready in 2-4 days

Care information

Always use caution and common sense when working with tools.

Delivery and Shipping

Orders placed with Sharp Edge Australia will be delivered within 1 to 7 business days to 98% of Australia using Australia Post

(DT693) HSS-E (M35) Extra Long series Drill for Deep Hole (TiAlN Coated) Worm Pattern is an HSS-E (M35), TiAlN coating, straight shank drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.

Product details

The DT693 series YG-1 HSS 5 Percent cobalt extra long 25xD drills have a worm pattern geometry which feature a parabolic u-shaped flute for efficient chip evacuation. Excellent for deep hole drilling in soft or long chipping materials. Diameters range from 4-10mm.

Features & Benefits

  • 25xD Extra Long Length Drill for Deep Hole Drilling.
  • Made from a HSS substrate with a 5% cobalt content.
  • Bright Finish.
  • Suitable for machining Non Alloy Steels, Alloy Steels, Grey Cast Iron, Malleable Cast Iron, Special Aluminum or Magnesium Alloys.
  • Worm pattern drills feature a parabolic u-shaped flute for efficient chip evacuation.
  • Bright finish prevents built up edge and deep flute pockets prevent chip clogging.
  • Excellent for soft or long chipping materials.

Why choose it

  • Specified features include HSS-E (M35), TiAlN coating, straight shank, extra-long length.
  • Diameter and length data support accurate tool selection.
  • Available in 5 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by Drill Diameter (mm) and confirm the shank fits the intended holder or machine.

  • Drill Diameter (mm): 4 — Part DT693040
  • Drill Diameter (mm): 5 — Part DT693050
  • Drill Diameter (mm): 6 — Part DT693060
  • Drill Diameter (mm): 8 — Part DT693080
  • Drill Diameter (mm): 10 — Part DT693100
