Excision  |  SKU: SEDL692030

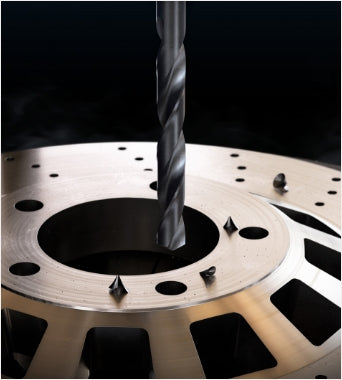

Excision (Dl692) HSSco5(M35) Ex-Long Dh100 Type Straight Shank Drill Bright DIN

Excision
$28.99
Tax included Shipping calculated at checkout.

Pickup available at Head Office

Usually ready in 2-4 days

Care information

Always use caution and common sense when working with tools.

Delivery and Shipping

Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.

Excision (Dl692) HSSco5(M35) Ex-Long Dh100 Type Straight Shank Drill Bright DIN. Drill bits produce holes using the cutting geometry and shank specified for the tool.

Choosing the right specification

Choose diameter, flute length and shank for the required hole and drill. Material and coating are specific to the selected item.

Product details

(Dl692) HSSco5(M35) Ex-Long Dh100 Type Straight Shank Drill Bright DIN is an HSS-E (M35), straight shank, DIN 1869 drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.

  • Specified features include HSS-E (M35), straight shank, DIN 1869, extra-long length.
  • Diameter and length data support accurate tool selection.

Choose by drill diameter, flute length and overall length and confirm the shank fits the intended holder or machine.

  • Material / grade: HSS-Co5
  • Model / series reference: DL692, DH100
Specifications and available options
Specification HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill Bright DIN 1869/2 3X130X190
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 3.5X145X210
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 4X150X220
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 4.5X160X235
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 5X170X245
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 5.5X180X260
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 6X180X260
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 6.5X190X275
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 7X200X290
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 7.5X200X290
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 8X210X305
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 8.5X210X305
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 9X220X320
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 9.5X220X320
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 10X235X340
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 10.2X235X340
Match each specification to its product code
Specification Product code (SKU)
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill Bright DIN 1869/2 3X130X190 SEDL692030
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 3.5X145X210 SEDL692035
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 4X150X220 SEDL692040
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 4.5X160X235 SEDL692045
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 5X170X245 SEDL692050
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 5.5X180X260 SEDL692055
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 6X180X260 SEDL692060
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 6.5X190X275 SEDL692065
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 7X200X290 SEDL692070
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 7.5X200X290 SEDL692075
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 8X210X305 SEDL692080
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 8.5X210X305 SEDL692085
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 9X220X320 SEDL692090
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 9.5X220X320 SEDL692095
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 10X235X340 SEDL692100
HSSCo5(M35) Ex-Long DH100 Type Straight Shank Drill DIN 1869/2 10.2X235X340 SEDL692102
