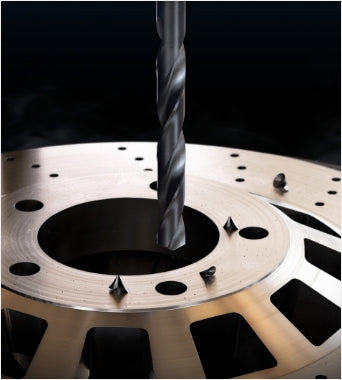

Excision (DL608) HSS-E (M35) Morse Taper Shank Long series Drill for Deep Hole (Bright) Worm Pattern
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Most in-stock orders are dispatched within 1–2 business days. After dispatch, delivery is estimated at 1–7 business days to most Australian metro and regional areas. Remote destinations and custom or special orders may take longer. Delivery timeframes are estimates. See our Shipping Policy for details.
Excision (DL608) HSS-E (M35) Morse Taper Shank Long series Drill fo...
Excision (DL608) HSS-E (M35) Morse Taper Shank Long series Drill for Deep Hole (Bright) Worm Pattern. Drill bits produce holes using the cutting geometry and shank specified for the tool.
Choosing the right specification
Choose diameter, flute length and shank for the required hole and drill. Material and coating are specific to the selected item.
Product details
(DL608) HSS-E (M35) Morse Taper Shank Long series Drill for Deep Hole (Bright) Worm Pattern is an HSS-E (M35), Morse-taper shank, DIN 341 drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.
Product details
YG-1 DL608 HSS-E Long Taper Shank Drills combine 5% cobalt HSS with 8xD reach. The Morse Taper shank and worm pattern design ensure stable drive and efficient evacuation. Parabolic U-shaped flutes and deep pockets improve chip flow, preventing clogging in deep holes. A bright finish supports clean cutting on non-alloy steels, alloys, cast iron, aluminium, and magnesium.
- Specified features include HSS-E (M35), Morse-taper shank, DIN 341, long length.
- Diameter and length data support accurate tool selection.
Choose by drill diameter, flute length and overall length and confirm the shank fits the intended holder or machine.
- Material / grade: HSS-E
- Model / series reference: DL608
Specifications and available options
| Specification | Drill Diameter (mm): 13 Drill Diameter (mm): 13.5 Drill Diameter (mm): 14 Drill Diameter (mm): 14.5 Drill Diameter (mm): 15 Drill Diameter (mm): 15.5 Drill Diameter (mm): 16 Drill Diameter (mm): 17 Drill Diameter (mm): 17.5 Drill Diameter (mm): 18 Drill Diameter (mm): 18.5 Drill Diameter (mm): 19 Drill Diameter (mm): 19.5 Drill Diameter (mm): 20 Drill Diameter (mm): 21 Drill Diameter (mm): 22 Drill Diameter (mm): 23 Drill Diameter (mm): 24 Drill Diameter (mm): 25 Drill Diameter (mm): 26 Drill Diameter (mm): 28 Drill Diameter (mm): 30 HSSCo5(M35) Long DH100 Type Taper Shank Drill Bright DIN 341 16.5XMT#2X159X257 HSSCo5(M35) Long DH100 Type Taper Shank Drill Bright DIN 341 27XMT#3X222X343 HSSCo5(M35) Long DH100 Type Taper Shank Drill Bright DIN 341 29XMT#3X230X351 |
|---|
