Excision  |  SKU: SEDL510099

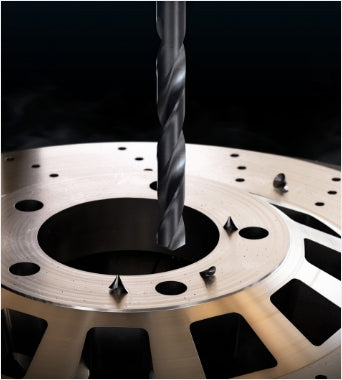

Excision (DL510) HSS-E (M35) Stub Drill for Deep Hole (Bright) Worm Pattern - M35

$30.49
Tax included Shipping calculated at checkout.

Pickup available at Head Office

Usually ready in 2-4 days

Care information

Always use caution and common sense when working with tools.

Delivery and Shipping

Orders placed with Sharp Edge Australia will be delivered within 1 to 7 business days to 98% of Australia using Australia Post

(DL510) HSS-E (M35) Stub Drill for Deep Hole (Bright) Worm Pattern - M35 is an HSS-E (M35), straight shank, DIN 1897 drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.

Product details

The DL510 series YG-1 HSS 5 Percent cobalt stub drills have a worm pattern geometry which feature a parabolic u-shaped flute for efficient chip evacuation. Excellent for soft or long chipping materials. Diameters range from 2-20mm.

Features & Benefits

  • 3xD Jobber Drill.
  • Made from a HSS substrate with a 5% cobalt content.
  • Bright Finish.
  • Suitable for machining Non Alloy Steels, Alloy Steels, Grey Cast Iron, Malleable Cast Iron, Special Aluminum or Magnesium Alloys.
  • Worm pattern drills feature a parabolic u-shaped flute for efficient chip evacuation.
  • Bright finish prevents built up edge and deep flute pockets prevent chip clogging.
  • Excellent for soft or long chipping materials.

Why choose it

  • Specified features include HSS-E (M35), straight shank, DIN 1897.
  • Diameter and length data support accurate tool selection.
  • Available in 7 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by drill diameter, flute length and overall length and confirm the shank fits the intended holder or machine.

  • HSSCo5(M35) Stub DH100 Type Straight Shank Drill Bright DIN 1897 9.9X43X89 — Part DL510099
  • HSSCo5(M35) Stub DH100 Type Straight Shank Drill Bright DIN 1897 10.9X47X95 — Part DL510109
  • HSSCo5(M35) Stub DH100 Type Straight Shank Drill Bright DIN 1897 11X47X95 — Part DL510110
  • HSSCo5(M35) Stub DH100 Type Straight Shank Drill Bright DIN 1897 11.4X47X95 — Part DL510114
  • HSSCo5(M35) Stub DH100 Type Straight Shank Drill Bright DIN 1897 11.5X47X95 — Part DL510115
  • HSSCo5(M35) Stub DH100 Type Straight Shank Drill Bright DIN 1897 12.5X51X102 — Part DL510125
  • HSSCo5(M35) Stub DH100 Type Straight Shank Drill Bright DIN 1897 19.5X66X131 — Part DL510195
