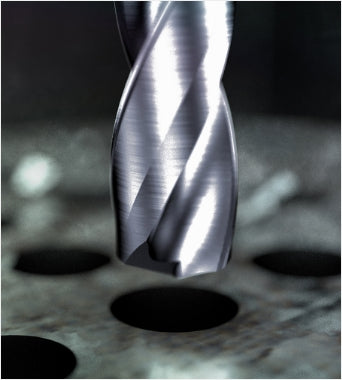

Excision (DH500) Dream Drill for High Hardened Steel HRC50-HRC70

(DH500) Dream Drill for High Hardened Steel HRC50-HRC70 is an TiAlN coating drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.

Product details

The YG-1 DH500 Dream Drills are designed for high performance drilling of high hardened steels (HRc50-HRc70). These are self centering and can drill to a h7 tolerance which eliminates any reaming operations, whilst the low 15 degree helix angle maximises the rigidity which is required in hardened steel applications. Diameters range from 2.6-14mm and they are supplied with whole number shanks.

• Micrograin Carbide Substrate
• TiAlN Coated High Performance Drill
• For High Performance Drilling on High Hardened Steel
• 15 degree Helix to Maximise Rigidity
• Self Centering with 140 degree Drill Point
• Eliminates Reaming Operations

Specifications

Why choose it

• Specified features include TiAlN coating.
• Diameter and length data support accurate tool selection.
• Available in 42 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by drill diameter, flute length and overall length and confirm the shank fits the intended holder or machine.

42 options are available in this product family. Use the selector to choose the required drill diameter, flute length and overall length; each option remains tied to its exact part number.
