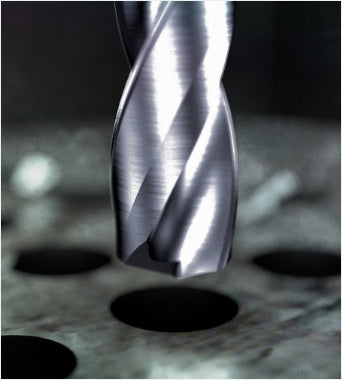

Excision (DH450) Dream Drill - Flat Bottom, 5XD with Coolant Hole - 32 to 64
Pickup available at Head Office
Usually ready in 2-4 days
Care information
Care information
Always use caution and common sense when working with tools.
Delivery and Shipping
Delivery and Shipping
Orders placed with Sharp Edge Australia will be delivered within 1 to 7 business days to 98% of Australia using Australia Post
Excision (DH450) Dream Drill - Flat Bottom, 5XD with Coolant Hole -...
(DH450) Dream Drill - Flat Bottom, 5XD with Coolant Hole - 32 to 64 is an TiAlN coating drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.
Product details
The YG-1 DH450 Flat Bottom Dream Drills are designed for the drilling of flat, inclined and curved surfaces on Steel and Cast Iron (also suitable for general stainless steel). These drills are 2-3 times quicker than drilling with a slot drill and are also effective at drilling through thin plates by minimising potential burrs on entrance and exit. TiAlN coated with through coolant.
- Micrograin Carbide Substrate
- Flat Bottom Drill for Flat, Inclined & Curved Surfaces
- 2-3 Times Quicker Than Drilling With A Slot Drill
- Ideal for Steel & Cast Iron
- Also suitable for general Stainless Steel
- Minimized Burrs when Drilling Thin Plate
- TiAlN coated with through coolant
Specifications
| Drilling Depth | 5XD |
| Length | LONG |
| Size Min | D3.0 |
| Size Max | D20.0 |
| Surface Treatment | TiAIN |
Why choose it
- Specified features include TiAlN coating.
- Diameter and length data support accurate tool selection.
- Available in 7 options so the required size or configuration can be selected without changing product family.
Choose the right option
Choose by drill diameter, flute length and overall length and confirm the shank fits the intended holder or machine.
- Dream Drill-Flat Bottom 5XD with Coolant Hole Slot(TiAlN) 7/32X6X44X82 — Part DH450014F
- Dream Drill-Flat Bottom 5XD with Coolant Hole Slot(TiAlN) 9/32X8X53X91 — Part DH450018F
- Dream Drill-Flat Bottom 5XD with Coolant Hole Slot(TiAlN) 13/32X12X71X118 — Part DH450026F
- Dream Drill-Flat Bottom 5XD with Coolant Hole Slot(TiAlN) 15/32X12X71X118 — Part DH450030F
- Dream Drill-Flat Bottom 5XD with Coolant Hole Slot(TiAlN) 21/64X10X61X103 — Part DH450021F
- Dream Drill-Flat Bottom 5XD with Coolant Hole Slot(TiAlN) 23/64X10X61X103 — Part DH450023F
- Dream Drill-Flat Bottom 5XD with Coolant Hole Slot(TiAlN) 29/64X12X71X118 — Part DH450029F
