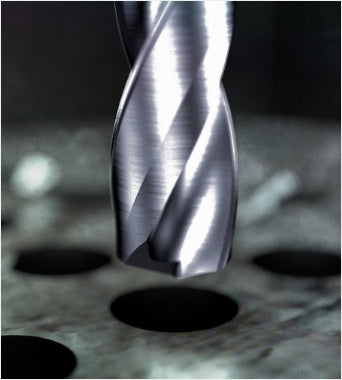

Excision (D5306) Carbide NC Spotting Drill 90°

(D5306) Carbide NC Spotting Drill 90° is an carbide drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.

Product details

The D5306 series uncoated carbide spot drills feature a 90 degree angle suitable for machining pilot holes. They are supplied with a weldon shank, most suitable for being clamped in an ER collet chuck. Solid carbide spot drills offer longer tool life and higher performance compared to HSS substrates. The uncoated finish is suitable for general purpose spotting on Steel, Stainless Steel, Exotics, Cast Iron and Non-Ferrous materials.

Features & Benefits

• Ideal for performance in 90 degree spotting applications.
• Excellent value solid carbide substrate for longer tool life and higher performance compared to HSS.
• Uncoated finish for general purpose machining of Steel Stainless, Exotics, Cast Iron and Non-Ferrous.
• Manufactured by global market leader of engineering cutting tools, YG-1.

Why choose it

• Specified features include carbide.
• Diameter and length data support accurate tool selection.
• Available in 8 options so the required size or configuration can be selected without changing product family.

Choose the right option

Choose by drill diameter, flute length and overall length and confirm the shank fits the intended holder or machine.

• CARBIDE NC Spotting Drill(90deg.) 3X10X45 — Part D5306030
• CARBIDE NC Spotting Drill(90deg.) 4X12X50 — Part D5306040
• CARBIDE NC Spotting Drill(90deg.) 6X13X50 — Part D5306060
• CARBIDE NC Spotting Drill(90deg.) 8X23X60 — Part D5306080
• CARBIDE NC Spotting Drill(90deg.) 10X24X70 — Part D5306100
• CARBIDE NC Spotting Drill(90deg.) 12X24X70 — Part D5306120
• CARBIDE NC Spotting Drill(90deg.) 16X29X75 — Part D5306160
• CARBIDE NC Spotting Drill(90deg.) 20X35X100 — Part D5306200
