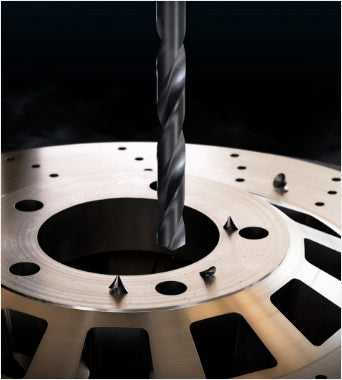

Excision (D1209) HSS (M2) Morse Taper Shank Extra Long series Drill
Excision (D1209) HSS (M2) Morse Taper Shank Extra Long series Drill. Drill bits produce holes using the cutting geometry and shank specified for the tool.
Choosing the right specification
Choose diameter, flute length and shank for the required hole and drill. Material and coating are specific to the selected item.
Product details
(D1209) HSS (M2) Morse Taper Shank Extra Long series Drill is an HSS, Morse-taper shank, extra-long length drill range for producing holes to the selected diameter and length specification. Each option keeps the cutting dimensions with its exact part number.
Product details
YG-1 D1209 HSS Long Length drills use a Morse Taper Shank for stability. They are steam tempered with a Black Oxide finish for dependable, economical performance. The 8xD length supports deep holes while the plain HSS substrate remains versatile. Suitable materials include steel, stainless steel, cast iron, aluminium, cast steel, and graphite.
- Specified features include HSS, Morse-taper shank, extra-long length.
- Diameter and length data support accurate tool selection.
Choose by drill diameter, flute length and overall length and confirm the shank fits the intended holder or machine.
- Material / grade: HSS
- Model / series reference: D1209
Specifications and available options
| Specification | Drill Diameter (mm): 14.5 Drill Diameter (mm): 18.5 Drill Diameter (mm): 21 Drill Diameter (mm): 22 Drill Diameter (mm): 26.5 Drill Diameter (mm): 29.5 Drill Diameter (mm): 33 Drill Diameter (mm): 38 Drill Diameter (mm): 42 44XMT#4X385X585 Drill Diameter (mm): 45 Drill Diameter (mm): 50 HSS(M2) Ex-Long Taper Shank Drill Steam Homo 22.5XMT#2X270X405 HSS(M2) Ex-Long Taper Shank Drill Steam Homo 29XMT#3X305X460 HSS(M2) Ex-Long Taper Shank Drill Steam Homo 30.5XMT#3X320X480 HSS(M2) Ex-Long Taper Shank Drill Steam Homo 46XMT#4X385X585 |
|---|
Match each specification to its product code
| Specification | Product code (SKU) |
|---|---|
| Drill Diameter (mm): 14.5 | SED1209145 |
| Drill Diameter (mm): 18.5 | SED1209185 |
| Drill Diameter (mm): 21 | SED1209210 |
| Drill Diameter (mm): 22 | SED1209220 |
| Drill Diameter (mm): 26.5 | SED1209265 |
| Drill Diameter (mm): 29.5 | SED1209295 |
| Drill Diameter (mm): 33 | SED1209330 |
| Drill Diameter (mm): 38 | SED1209380 |
| Drill Diameter (mm): 42 | SED1209420 |
| 44XMT#4X385X585 | SED1209440 |
| Drill Diameter (mm): 45 | SED1209450 |
| Drill Diameter (mm): 50 | SED1209500 |
| HSS(M2) Ex-Long Taper Shank Drill Steam Homo 22.5XMT#2X270X405 | SED1209225 |
| HSS(M2) Ex-Long Taper Shank Drill Steam Homo 29XMT#3X305X460 | SED1209290 |
| HSS(M2) Ex-Long Taper Shank Drill Steam Homo 30.5XMT#3X320X480 | SED1209305 |
| HSS(M2) Ex-Long Taper Shank Drill Steam Homo 46XMT#4X385X585 | SED1209460 |
