Excision 22N/16 Dies
Excision 22N/16 Dies. Punches, dies and punching units produce the specified hole using a matching tool set.
Choosing the right specification
Match hole shape and size, punch-to-die pairing and machine connection. Check whether the selected item is one component or a complete unit.
Product details
Excision 24220 Oblong Die
- Oblong geometry is stated in the option data.
- Exact sizing supports punch-and-die pairing.
Choose by tooling group, shape and hole size, then verify the matching punch and required clearance.
- 22N/16 OBLONG DIE 6.7 X 20.7 β Part 24220067207
- 22N/16 OBLONG DIE 8.7 X 20.7 β Part 24220087207
- 22N/16 OBLONG DIE 10.7 X 20.7 β Part 24220107207
- 22N/16 OBLONG DIE 12.5 X 20.5 β Part 24220125205
- 22N/16 OBLONG DIE 14.7 X 18.7 β Part 24220147187

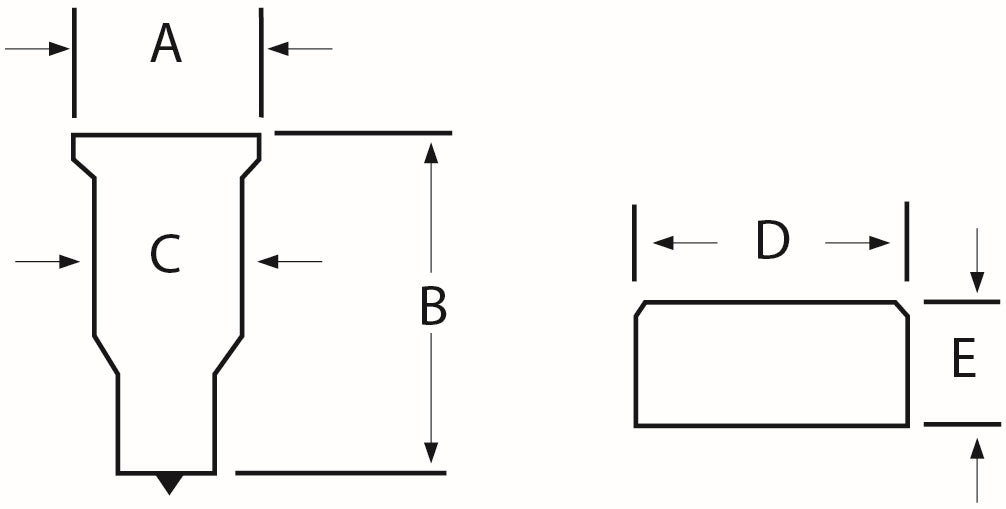

Excision 24220 Round Die
- Round geometry is stated in the option data.
- Exact sizing supports punch-and-die pairing.
Excision 24220 Square Die
- Square geometry is stated in the option data.
- Exact sizing supports punch-and-die pairing.
- 22N/16 SQUARE DIE 6.7 X 6.7 β Part 24220067067
- 22N/16 SQUARE DIE 8.7 X 8.7 β Part 24220087087
- 22N/16 SQUARE DIE 10.2 X 10.2 β Part 24220102102
- 22N/16 SQUARE DIE 10.7 X 10.7 β Part 24220107107
Specifications and available options
| Range | Excision 24220 Oblong Die Excision 24220 Round Die Excision 24220 Square Die |
|---|---|
| Specification | 22N/16 OBLONG DIE 10.7 X 20.7 β SE24220107207 22N/16 OBLONG DIE 12.5 X 20.5 β SE24220125205 22N/16 OBLONG DIE 14.7 X 18.7 β SE24220147187 22N/16 OBLONG DIE 6.7 X 20.7 β SE24220067207 22N/16 OBLONG DIE 8.7 X 20.7 β SE24220087207 22N/16 ROUND DIE 10.2 β SE24220102 22N/16 ROUND DIE 10.7 β SE24220107 22N/16 ROUND DIE 11.2 β SE24220112 22N/16 ROUND DIE 11.7 β SE24220117 22N/16 ROUND DIE 12.5 β SE24220125 22N/16 ROUND DIE 12.7 β SE24220127 22N/16 ROUND DIE 13.2 β SE24220132 22N/16 ROUND DIE 13.7 β SE24220137 22N/16 ROUND DIE 14.2 β SE24220142 22N/16 ROUND DIE 14.7 β SE24220147 22N/16 ROUND DIE 15.2 β SE24220152 22N/16 ROUND DIE 15.7 β SE24220157 22N/16 ROUND DIE 16.2 β SE24220162 22N/16 ROUND DIE 16.7 β SE24220167 22N/16 ROUND DIE 17.2 β SE24220172 22N/16 ROUND DIE 17.7 β SE24220177 22N/16 ROUND DIE 18.2 β SE24220182 22N/16 ROUND DIE 18.7 β SE24220187 22N/16 ROUND DIE 19.2 β SE24220192 22N/16 ROUND DIE 19.7 β SE24220197 22N/16 ROUND DIE 20.2 β SE24220202 22N/16 ROUND DIE 20.7 β SE24220207 22N/16 ROUND DIE 22.5 β SE24220225 22N/16 ROUND DIE 3.2 β SE24220032 22N/16 ROUND DIE 3.5 β SE24220035 22N/16 ROUND DIE 4.2 β SE24220042 22N/16 ROUND DIE 4.5 β SE24220045 22N/16 ROUND DIE 5.2 β SE24220052 22N/16 ROUND DIE 5.5 β SE24220055 22N/16 ROUND DIE 6.5 β SE24220065 22N/16 ROUND DIE 6.7 β SE24220067 22N/16 ROUND DIE 7.2 β SE24220072 22N/16 ROUND DIE 7.5 β SE24220075 22N/16 ROUND DIE 7.7 β SE24220077 22N/16 ROUND DIE 8.5 β SE24220085 22N/16 ROUND DIE 8.7 β SE24220087 22N/16 ROUND DIE 9.2 β SE24220092 22N/16 ROUND DIE 9.7 β SE24220097 22N/16 SQUARE DIE 10.2 X 10.2 β SE24220102102 22N/16 SQUARE DIE 10.7 X 10.7 β SE24220107107 22N/16 SQUARE DIE 6.7 X 6.7 β SE24220067067 22N/16 SQUARE DIE 8.7 X 8.7 β SE24220087087 |
